Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

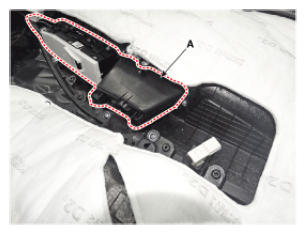

  3. Remove the power window bezel assembly (A) after loosening the mounting screws.
    G12999333Courtesy of HYUNDAI MOTOR AMERICA

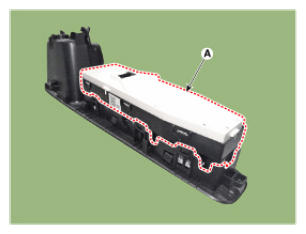

  4. Remove the power window switch assembly (A) after loosening the mounting screws.
    G12999334Courtesy of HYUNDAI MOTOR AMERICA
