Components And Components Location: Component

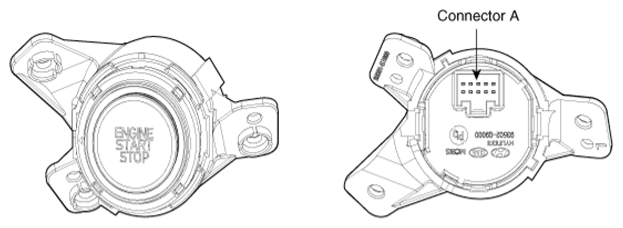

G13038219Courtesy of HYUNDAI MOTOR AMERICA
Connector A
G13038220Courtesy of HYUNDAI MOTOR AMERICA
No Description
1 SSB switch 1
2 -
3 SSB ILL (+)
4 Immobilizer power
5 -
6 GND
7 SSB switch 1
8 Rheostat
9 SSB ring ILL
10 Immobilizer GND
