Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

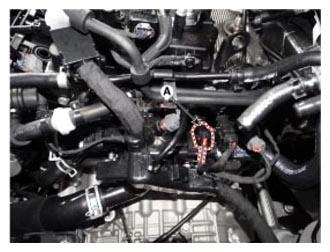

- Disconnect the crankshaft position sensor connector (A).
- Lift the vehicle.

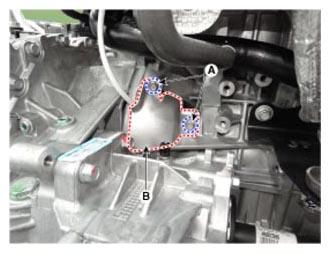

- Remove the protector (B) after loosening the mounting bolts (A).
Crankshaft position sensor protector mounting bolt (M6) :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

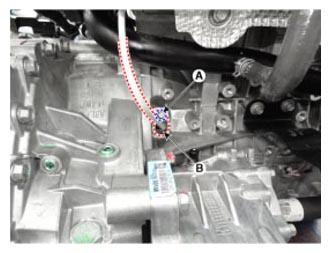

- Remove the crankshaft position sensor (B) after loosening the mounting bolt (A).
Crankshaft position sensor mounting bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
