Repair Procedures: Removal: Buzzer

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

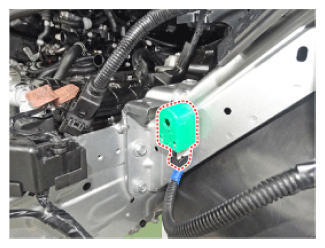

  3. Disconnect the connectors, then remove the buzzer (A).
    G12999028Courtesy of HYUNDAI MOTOR AMERICA
