Tailgate Open Switch

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to LIFTGATE TRIM )

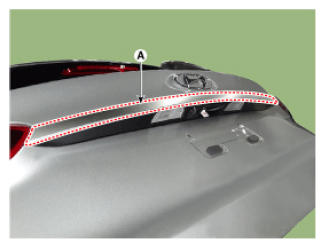

  3. Remove the tailgate garnish (A) after loosening the mounting nuts.
    G12999032Courtesy of HYUNDAI MOTOR AMERICA

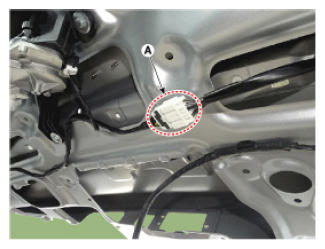

  4. Disconnect the tailgate switch connector (A).
    G12999033Courtesy of HYUNDAI MOTOR AMERICA

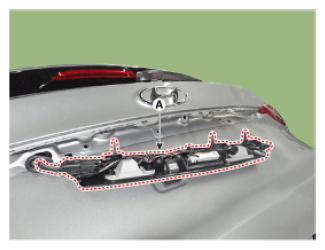

  5. Remove the tailgate switch assembly (A).
    G12999034Courtesy of HYUNDAI MOTOR AMERICA

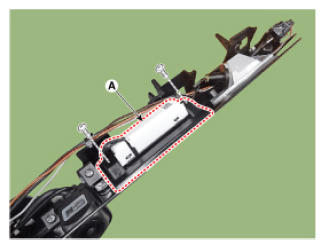

  6. Remove the tailgate switch (A) after loosening the screw.
    G12999035Courtesy of HYUNDAI MOTOR AMERICA
