Repair Procedures: Installation

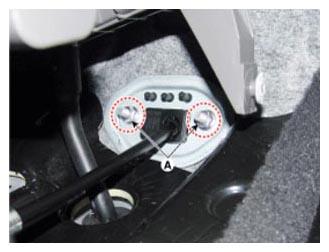

  1. Install the shift cable retainer and then tightening the retainer mounting nuts (A).

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

    G13039972Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • Install the cable after placing the shift lever and the manual control lever in the N position.

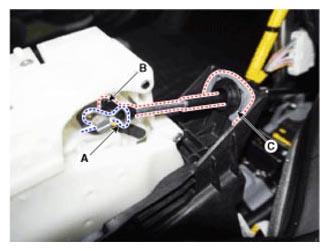

  2. Remove the cable eye end (C) from the shift lever.
  3. Remove the cable socket (B) from the shift lever.
  4. Remove the snap pin (A).
    G13039973Courtesy of HYUNDAI MOTOR AMERICA

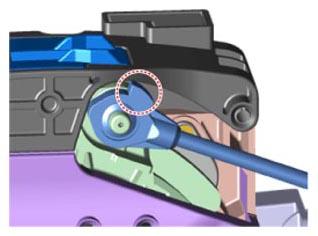

    CAUTION:
    1. Lug must assemble upward.
    2. Install the snap pin after placing the shift lever in the N position.
      G13039974Courtesy of HYUNDAI MOTOR AMERICA

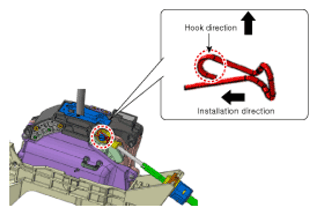

    3. When assembling the snap pin, be careful about the correct direction.
      • The band portion must point to the front of the vehicle.
      • The band portion must point outwards.
        G13039975Courtesy of HYUNDAI MOTOR AMERICA

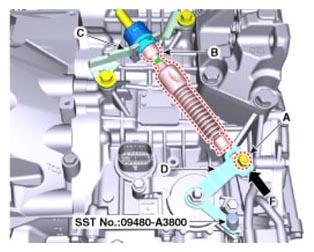

  5. Install the shift cable (B) in the cable bracket (C).
  6. Align the hole in the manual control lever with the "N" position hole.
  7. Insert the inhibitor switch guide pin (SST No: 09480-A3800).
  8. Lightly tighten the nut (A) after connected the shift cable (B) in the manual control lever (D).
  9. Push shift cable lightly to "F" direction shown to eliminate free play of shift cable.
  10. Tighten the nut (A) to the specified torque.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

    G13039976Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
  12. Install the airbag module.

    (Refer to Restraint - "AIRBAG MODULE ")

  13. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  14. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  15. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

    CAUTION:
    • Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
