Repair Procedures: Removal

CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

  • When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
  • Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
  • Maintain clean condition so that foreign substance does not get into the automatic transaxle.
  • Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
  • Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

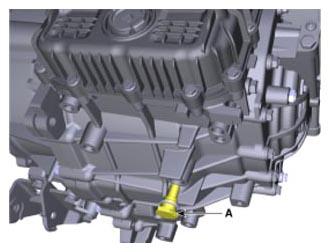

  3. Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

    Drain plug tightening torque:

    33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb-ft)

    G13039937Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the gasket before reinstalling the drain plug.
  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

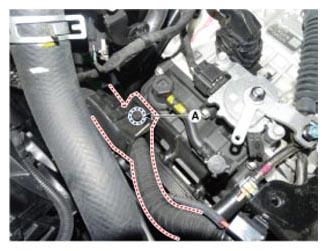

  5. Remove the fixing bolt (A) of wiring.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13039938Courtesy of HYUNDAI MOTOR AMERICA

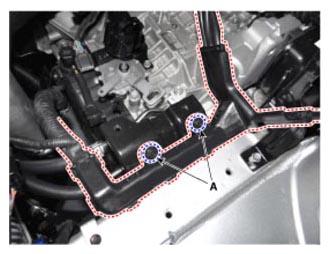

  6. Remove the fixing bolt (A) of wiring.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13039939Courtesy of HYUNDAI MOTOR AMERICA

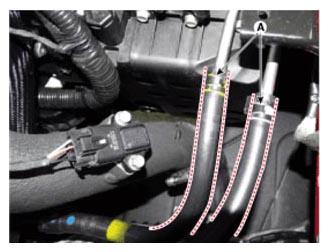

  7. Disconnect the ATF cooling hose (A).
    G13039940Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Carefully install the clamp not to damage the hose.
    • Install the clamp in a correct direction not to be interfered with other parts.
    • After the installation, start the engine and then check if there are any leakages from the hose.

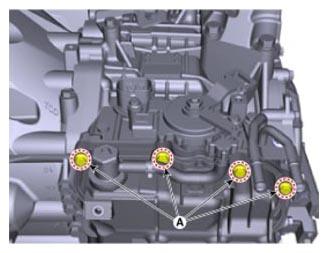

  8. Remove upper bolts (A) of the valve body cover.

    Tightening torque:

    11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

    G13039941Courtesy of HYUNDAI MOTOR AMERICA

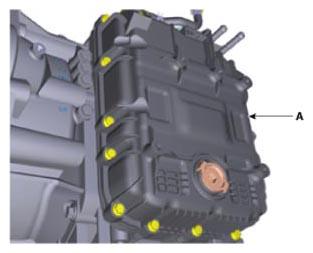

  9. Remove the valve body cover (A) after removing the bolts.

    Tightening torque:

    11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

    G13039942Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the gasket (A) before reinstalling the valve body cover.
    • After the installation, start the engine and then check if there are any leakages from the valve body cover.
      G13039943Courtesy of HYUNDAI MOTOR AMERICA

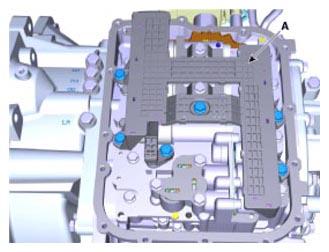

  10. Disconnect the main harness (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13039944Courtesy of HYUNDAI MOTOR AMERICA

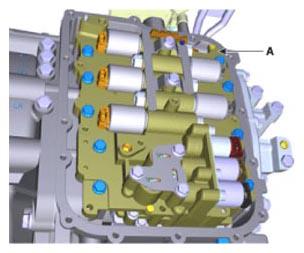

  11. Remove the valve body assembly (A).

    Tightening torque:

    1. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
    G13039945Courtesy of HYUNDAI MOTOR AMERICA

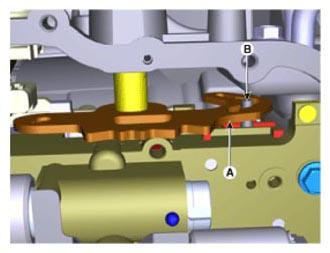

    CAUTION:
    • Attach the manual pin (B) to the detent lever (A) and assemble the valve body.
      G13039946Courtesy of HYUNDAI MOTOR AMERICA

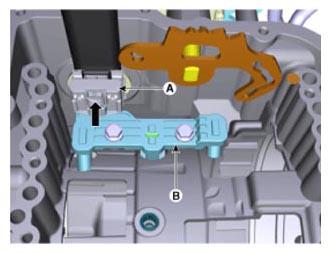

  12. Disconnect the speed sensor connector (A).
  13. Remove the speed sensor (B).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13039947Courtesy of HYUNDAI MOTOR AMERICA
    G13039948Courtesy of HYUNDAI MOTOR AMERICA
