Repair Procedures: Installation

  1. To install, reverse the removal procedure.

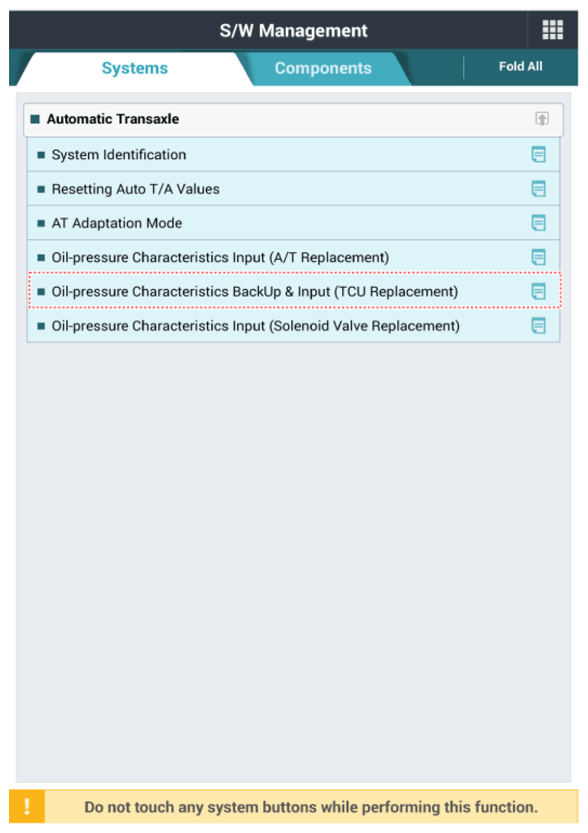

  2. Perform the oil pressure characteristics input procedure using the GDS when replacing with a new TCM.
    G13039918Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
