Repair Procedures: Inspection

  1. Connect the GDS on the Data Link Connector (DLC).
  2. Measure the output voltage and fuel pressure of the RPS at idle and various engine speed.
Pressure Output Voltage (V) [Vref=5V]
bar [MPa (kgf/cm2 , psi)]
0 0 (0, 0) 0.5
140 14 (142, 2031) 2.5
280 28 (286, 4061) 4.5

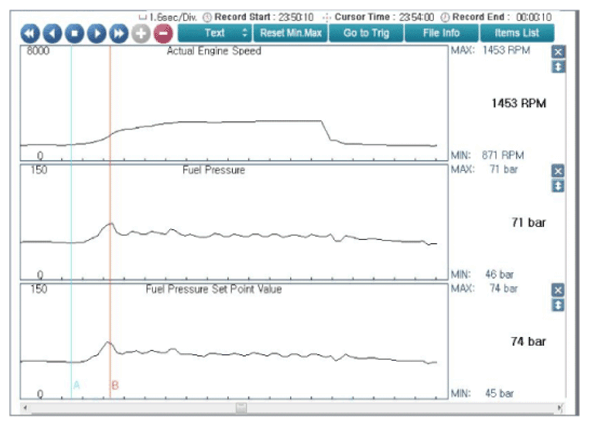

G13039468Courtesy of HYUNDAI MOTOR AMERICA
