Components Location

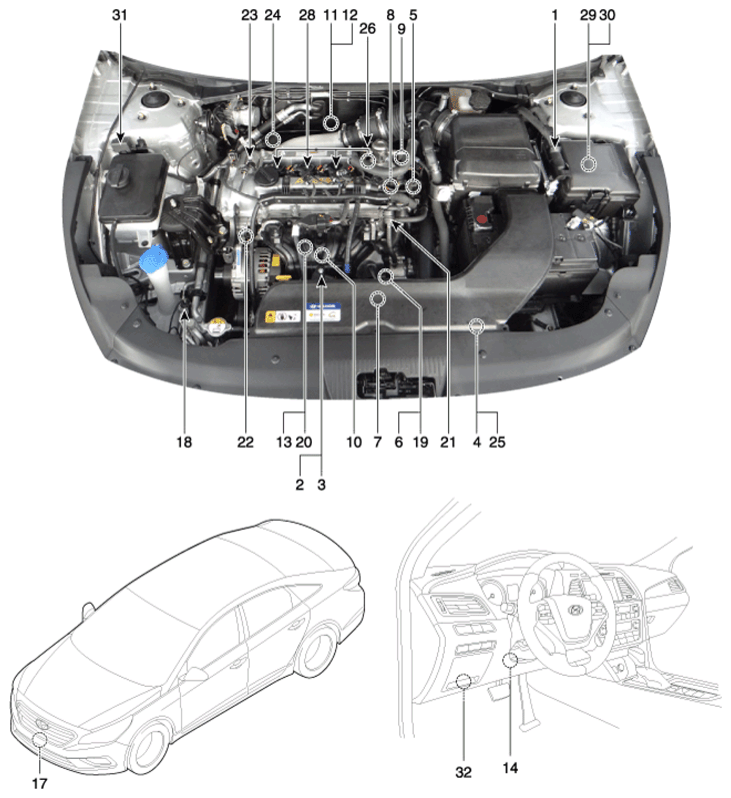

G12637493Courtesy of HYUNDAI MOTOR AMERICA

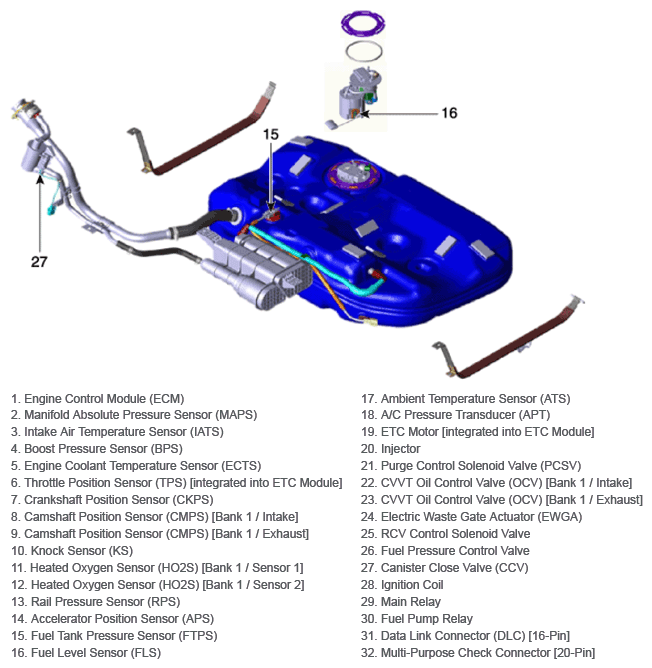

G12637494Courtesy of HYUNDAI MOTOR AMERICA

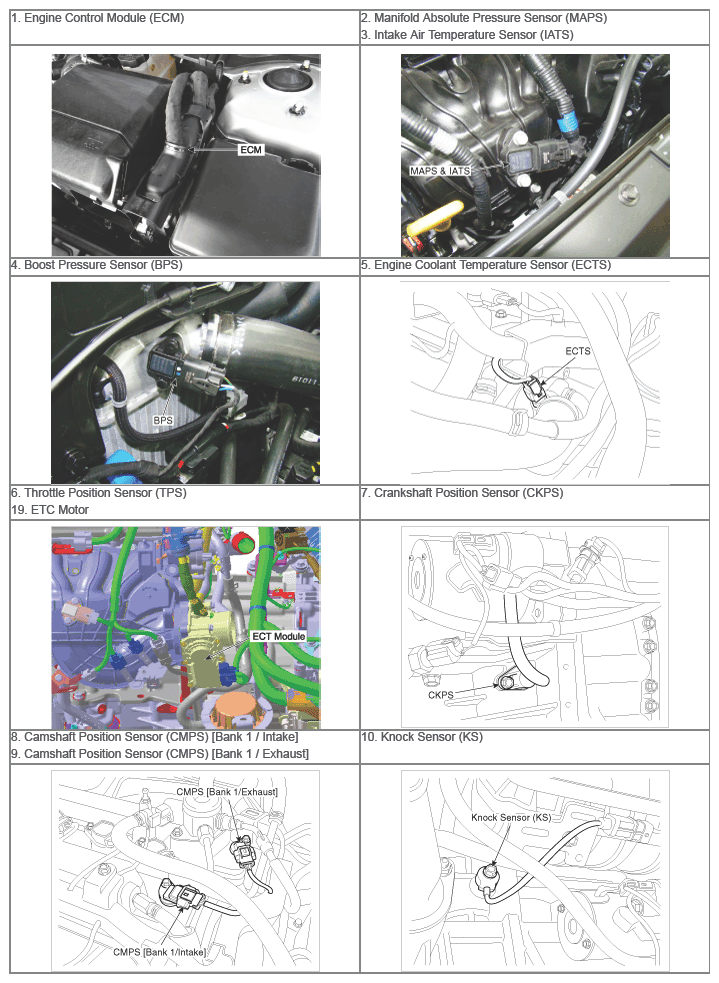

G12637495Courtesy of HYUNDAI MOTOR AMERICA

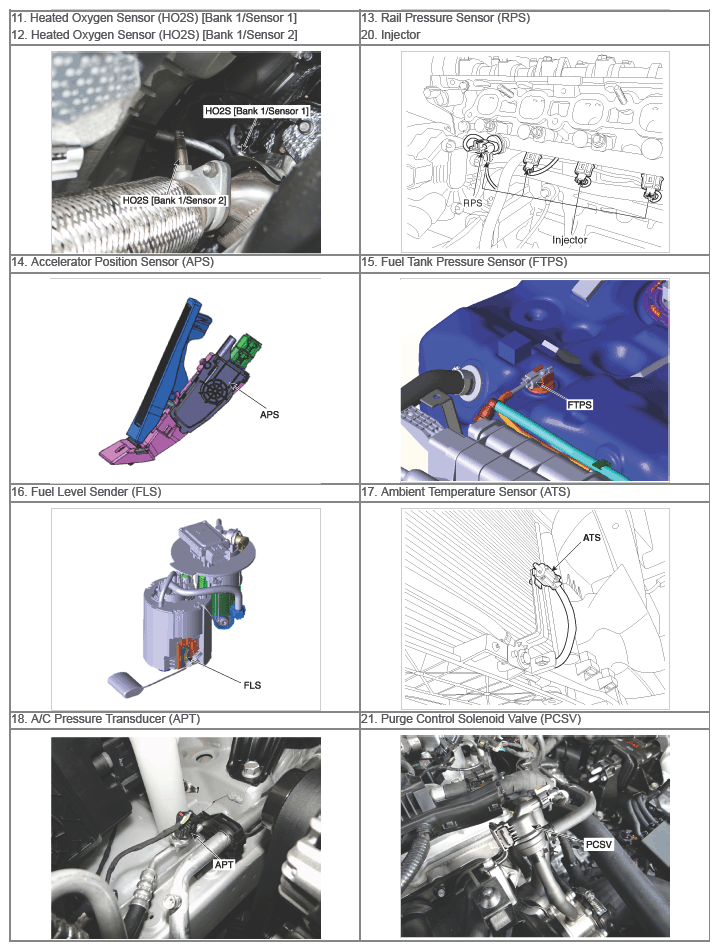

G12637496Courtesy of HYUNDAI MOTOR AMERICA

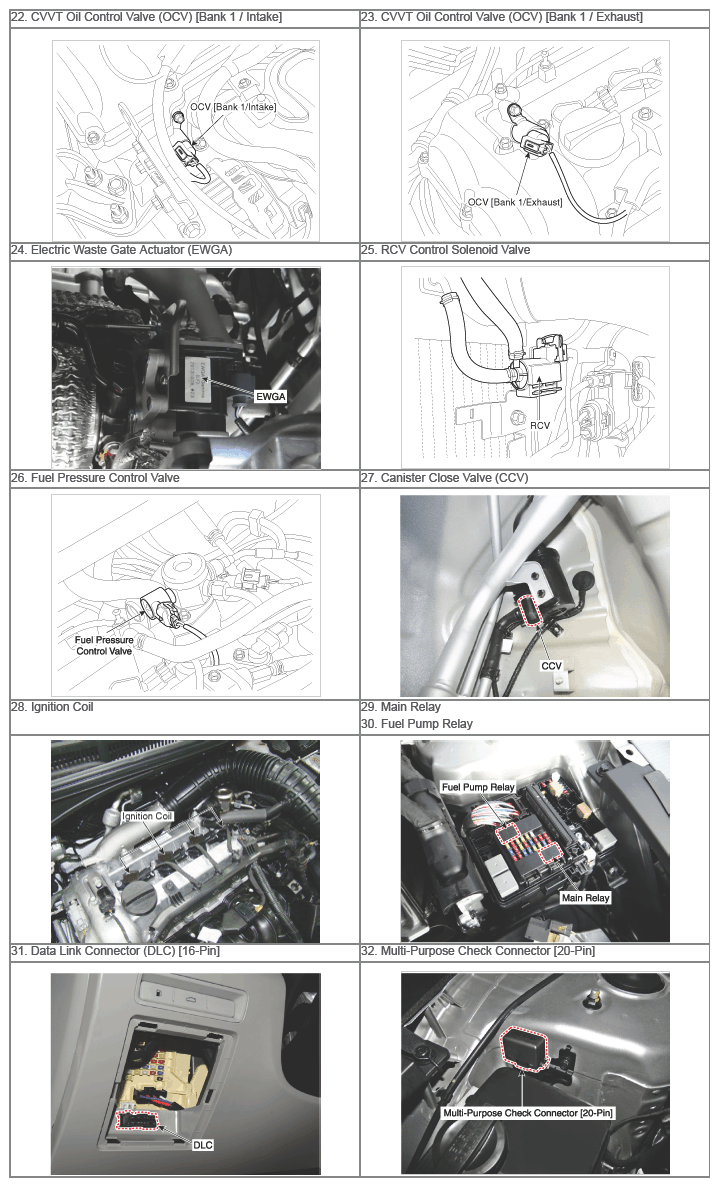

G12637497Courtesy of HYUNDAI MOTOR AMERICA
