Electric WGT Control Actuator: Specifications: Specification

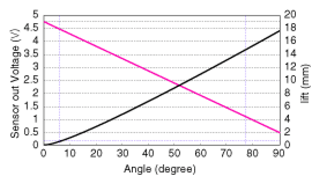

[EWGA Position Sensor]
ELECTRIC WGT CONTROL ACTUATOR SPECIFICATION
| Position | Output Voltage [V] | Operating Angle [°] | Range of Rod [mm], reference |
|---|---|---|---|
| Mechanical Close end stop Position (MCP) | 4.8 | 0 | 0 |
| Electrical Close end stop Position (ECP) | 4.2 | 12 | 1.8 |
| Electrical Open end stop Position (EOP) | 1 | 79 | 16 |
| Mechanical Open end stop Position (MOP) | 0.5 | 90 | 18 |
[EWGA DC Motor]
EWGA DC MOTOR RESISTANCE SPECIFICATION
| Item | Specification |
|---|---|
| Coil Resistance (Ω) | 1.44 ~ 1.96 [21°C (69.8°F)] |
