Repair Procedures: Removal
- Air Cleaner Assembly and Air Duct.
(Refer to "AIR CLEANER ")
- Battery and Battery Tray.
(Refer to "AUXILIARY 12V BATTERY ")

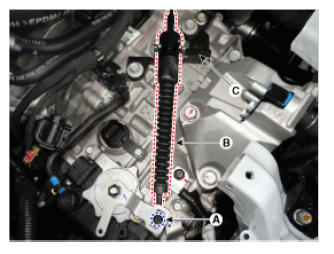

- Remove the nut (A) from the manual control lever.
- Remove the shift cable (B) from the bracket (C) at transaxle side.
- Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

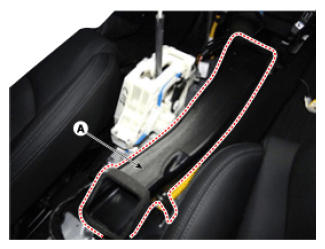

- Remove the air duct (A).

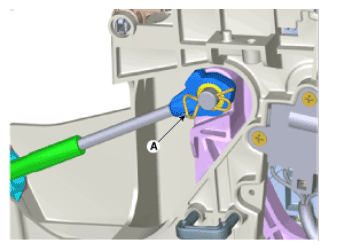

- Remove the snap pin (A).

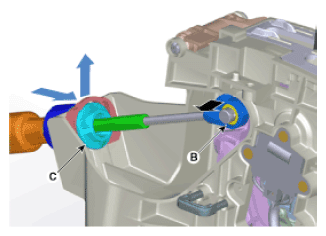

- Disconnect the cable eye end (B) from the shift lever.
- Disconnect the cable socket (C) from the shift lever.
- Remove the Airbag module.
(Refer to "AIRBAG MODULE ")

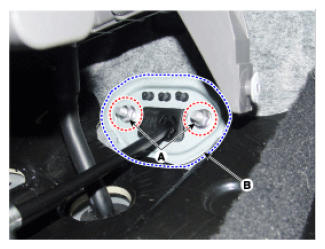

- Disconnect the shift cable retainer (B) after removing the mounting nut (A).
- Remove the shift cable by pulling it toward the interior.
