Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

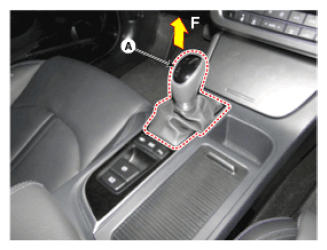

  2. Pull the knob (A) in the direction of "F" and remove the knob.
    G12793540Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ")

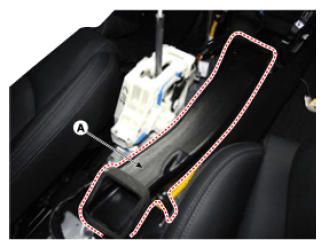

  4. Remove the air duct (A).
    G12793541Courtesy of HYUNDAI MOTOR AMERICA

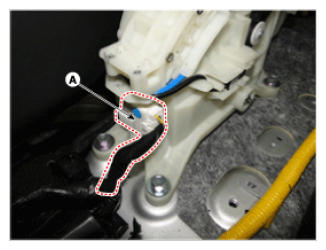

  5. Disconnect the connector (A) from the shift lever.
    G12793542Courtesy of HYUNDAI MOTOR AMERICA

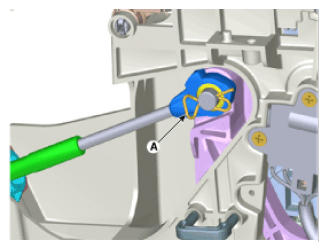

  6. Remove the snap pin (A).
    G12793543Courtesy of HYUNDAI MOTOR AMERICA

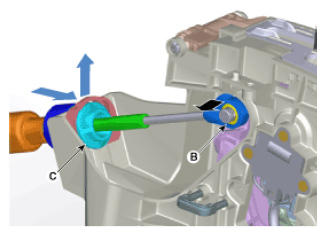

  7. Disconnect the cable eye end (B) from the shift lever.
  8. Disconnect the cable socket (C) from the shift lever.
    G12793544Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

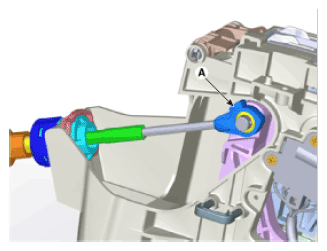

    1. Lug (A) must assemble upward.
      G12793545Courtesy of HYUNDAI MOTOR AMERICA

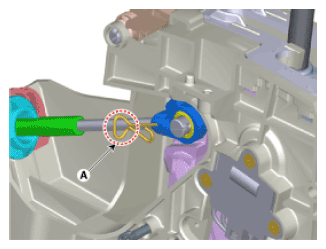

    2. Install the snap pin after placing the shift lever in the N position.
    3. When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
    G12793546Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the bolts and then shift lever assembly (A).

    Tightening Torque

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G12793547Courtesy of HYUNDAI MOTOR AMERICA
