Components Location

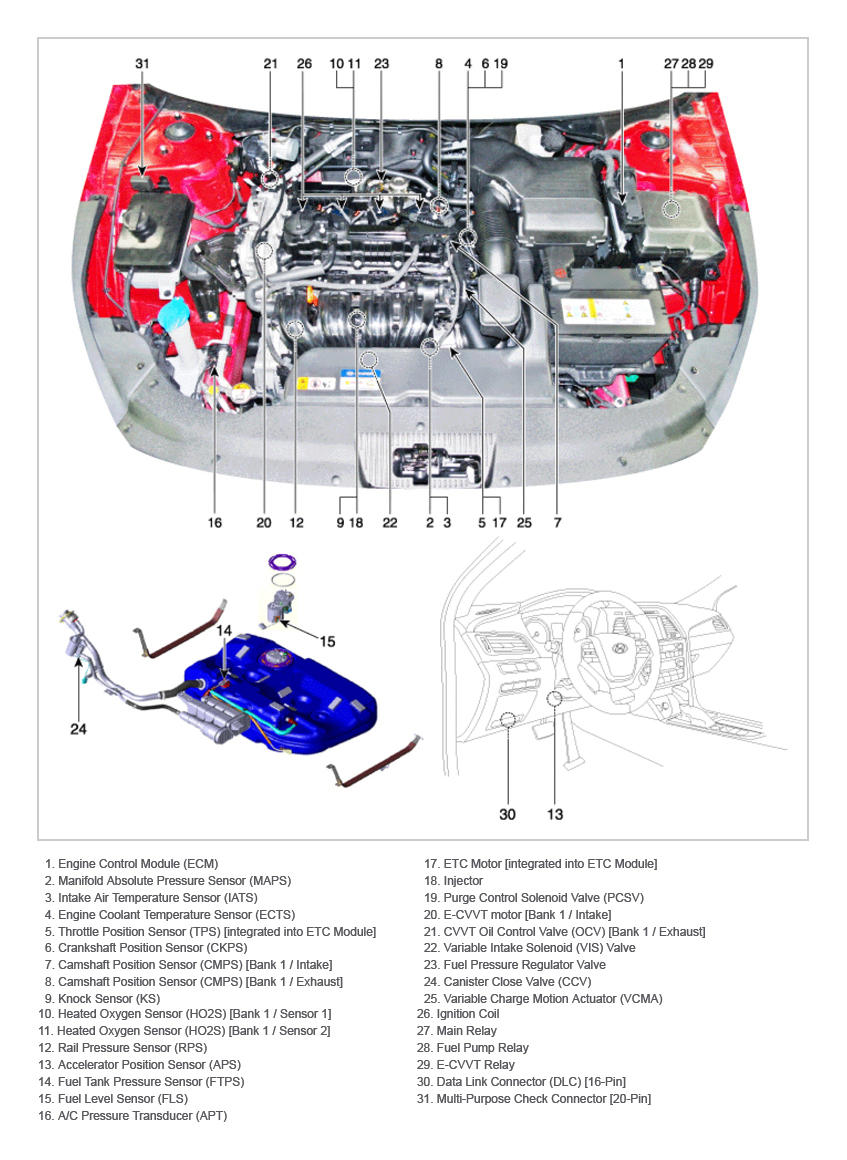

G12633262Courtesy of HYUNDAI MOTOR AMERICA

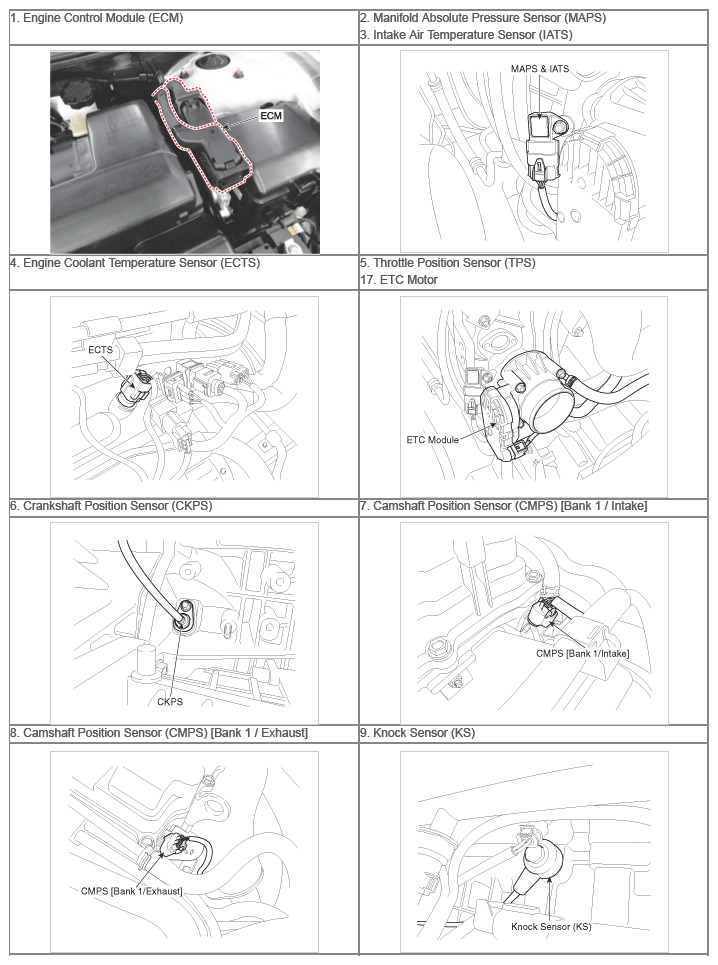

G12633263Courtesy of HYUNDAI MOTOR AMERICA

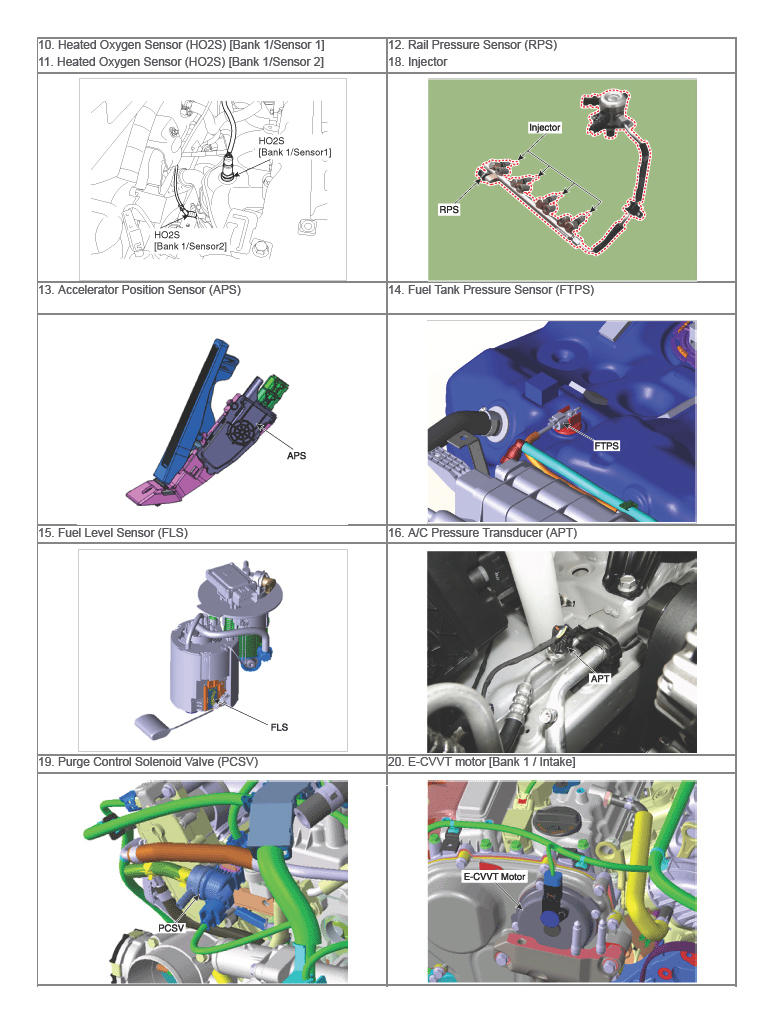

G12633264Courtesy of HYUNDAI MOTOR AMERICA

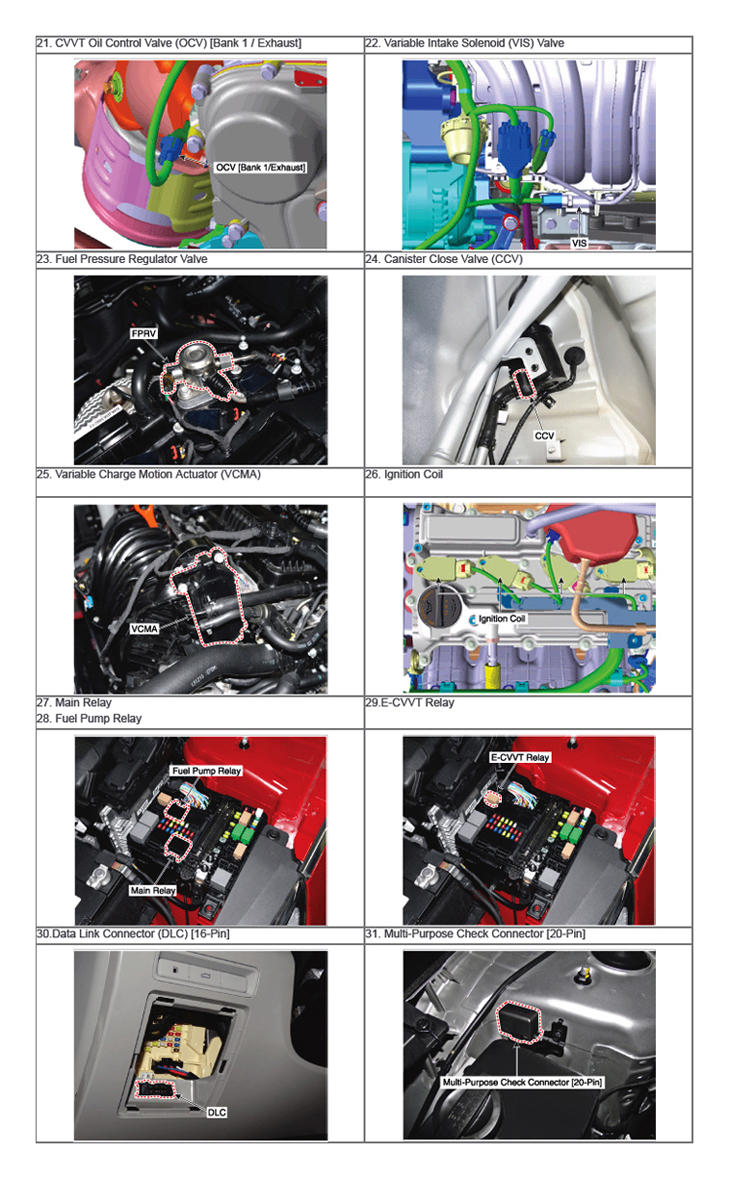

G12633265Courtesy of HYUNDAI MOTOR AMERICA
