Variant Coding Procedure

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.

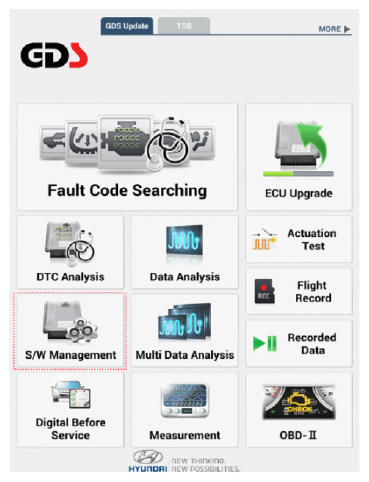

  2. Select the 'S/W Management' and 'Car model'.
    G15483208Courtesy of HYUNDAI MOTOR AMERICA

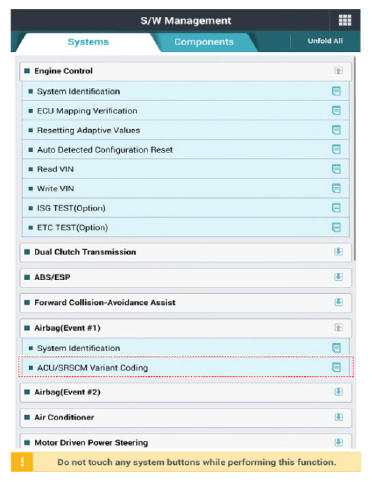

  3. Select "Airbag" and "ACU/SRSCM Variant Coding".
    G15483209Courtesy of HYUNDAI MOTOR AMERICA

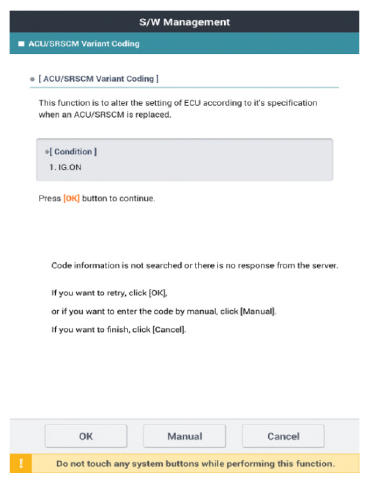

  4. Perform the "ACU/SRSCM Variant Coding" procedure according to the GDS screen message.
    G15483210Courtesy of HYUNDAI MOTOR AMERICA
