Repair Procedures: Disassembly

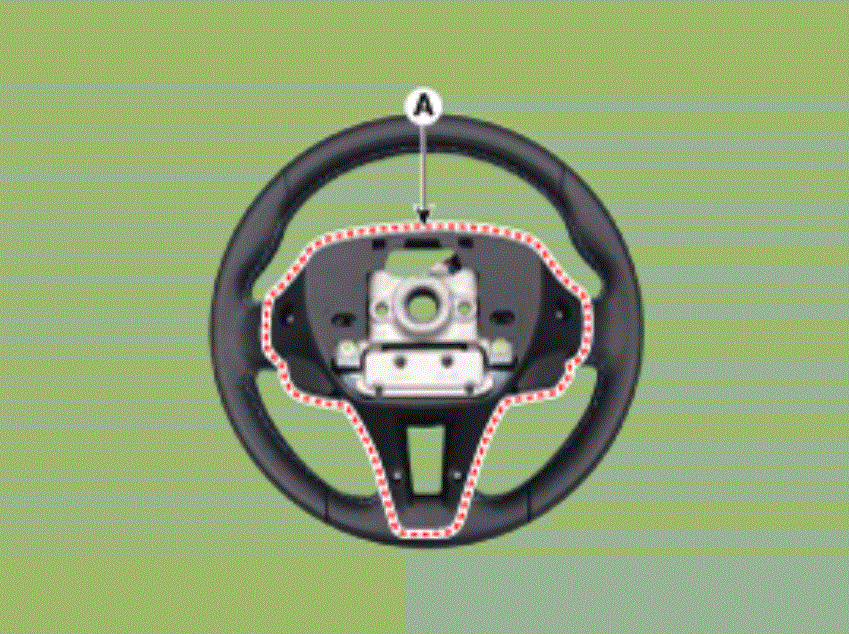

  1. Loosen the screw and then remove the lower cover (A).
    G15475240Courtesy of HYUNDAI MOTOR AMERICA

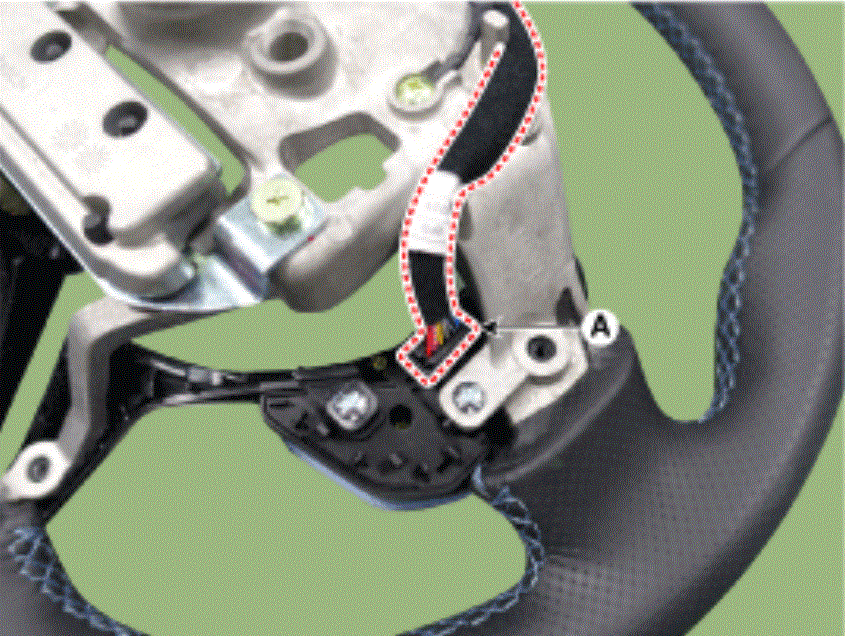

  2. Disconnect the remote control switch connector (A).
    G15475241Courtesy of HYUNDAI MOTOR AMERICA
    G15475242Courtesy of HYUNDAI MOTOR AMERICA

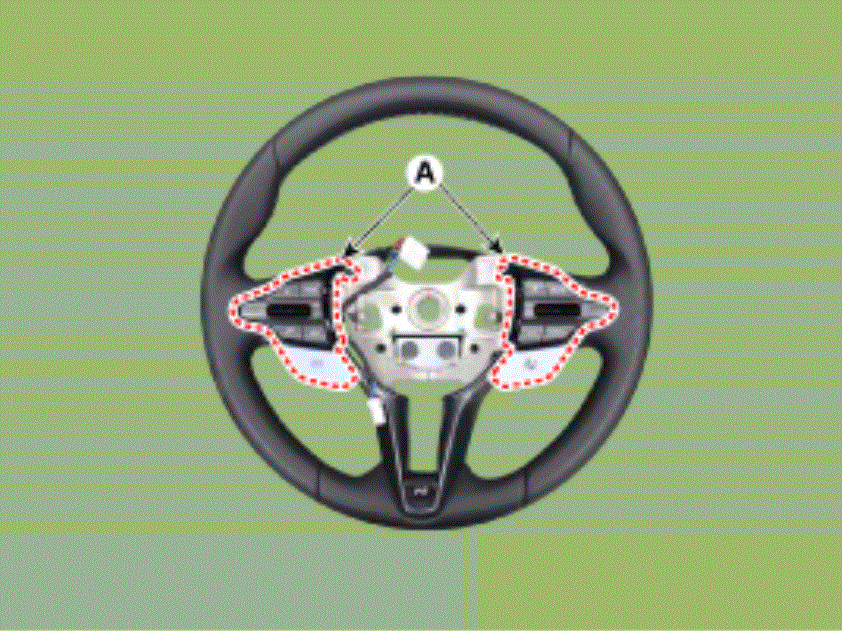

  3. Loosen the screw and then remove the remote control switch (A).
    G15475243Courtesy of HYUNDAI MOTOR AMERICA

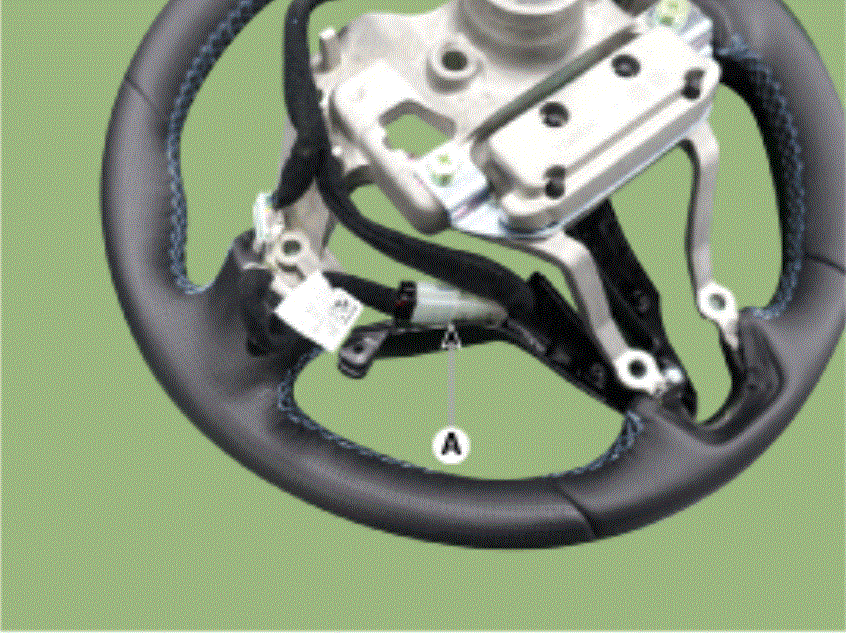

  4. Disconnect the wiring connector (A).
    G15475244Courtesy of HYUNDAI MOTOR AMERICA

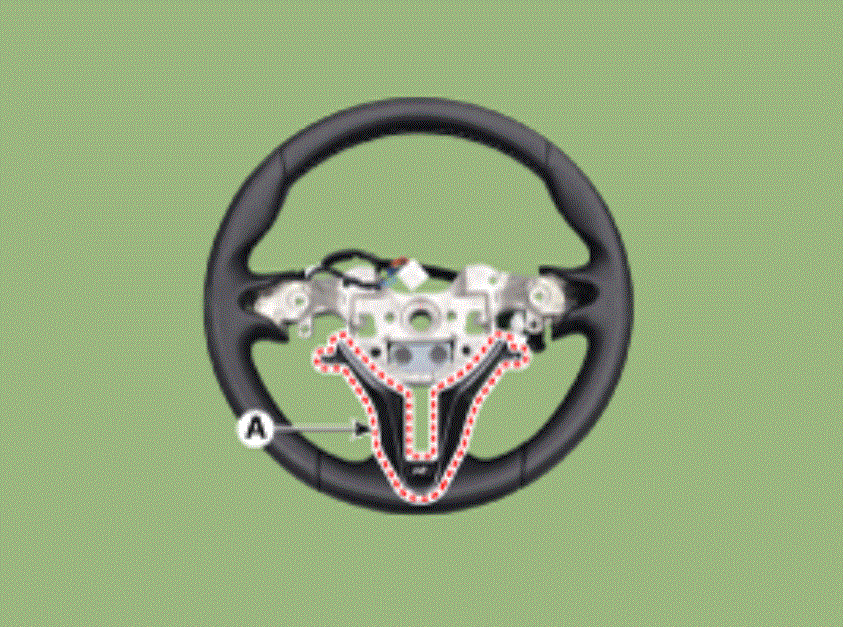

  5. Remove the steering wheel bezel (A).
    G15475245Courtesy of HYUNDAI MOTOR AMERICA

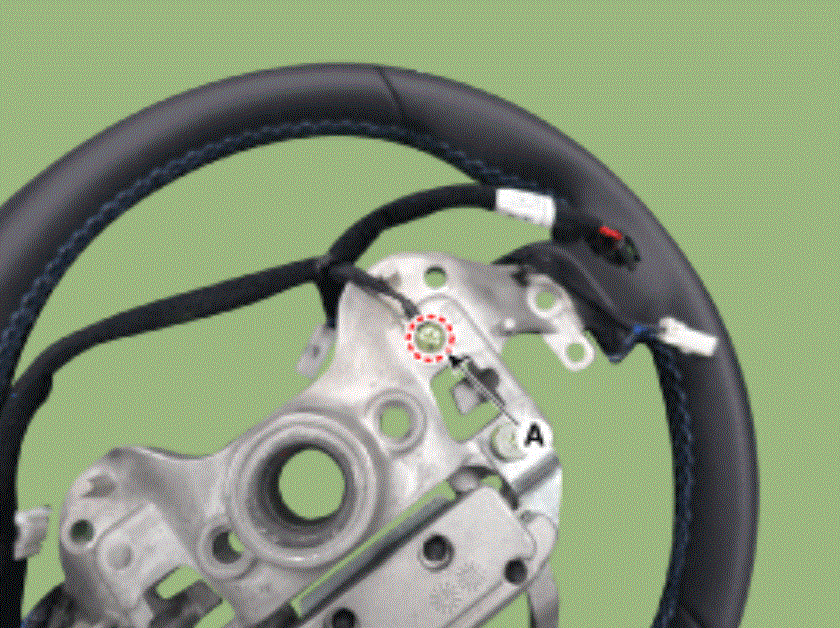

  6. Loosen the screw (A) and then remove the wiring.
    G15475246Courtesy of HYUNDAI MOTOR AMERICA
