Components And Components Location: Components

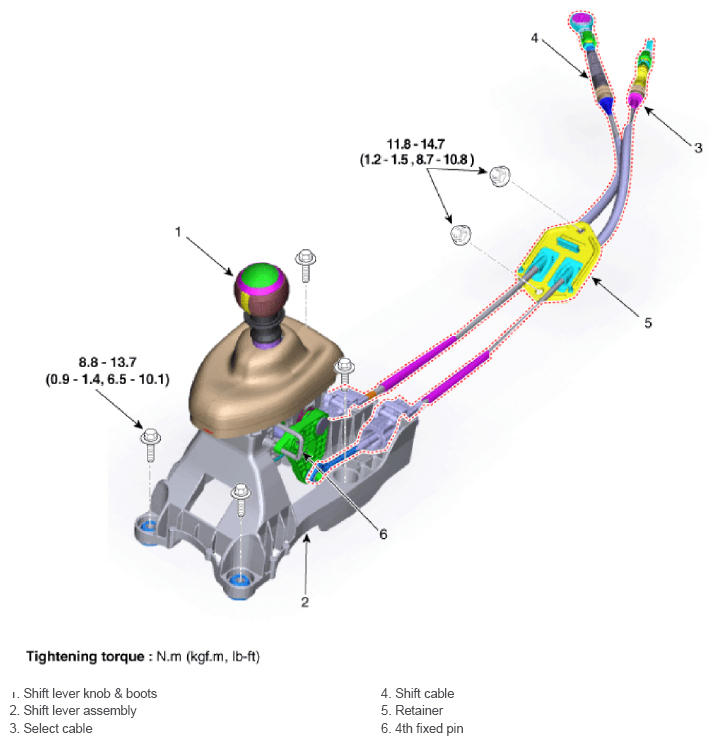

Fig 1: Control Cable Components Location With Torque Specification
G13052755Courtesy of HYUNDAI MOTOR AMERICA
