Repair Procedures: Installation

CAUTION:

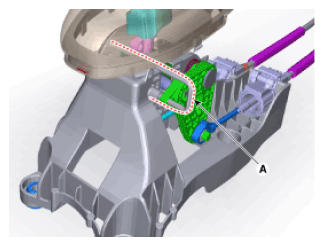

  • Place the shift lever and transaxle side lever in 4th shift position and insert the lever fixing pin (A).
    G13052763Courtesy of HYUNDAI MOTOR AMERICA

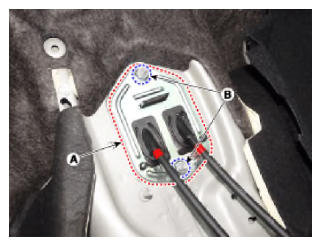

  1. Install the retainer (A) and then tighten the nuts (B-2ea).

    Tightening torque  :

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G13052764Courtesy of HYUNDAI MOTOR AMERICA

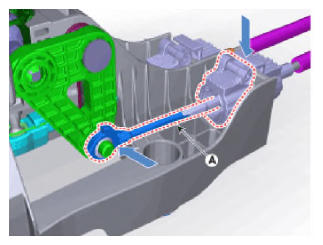

  2. Install the select cable (A).
    G13052765Courtesy of HYUNDAI MOTOR AMERICA

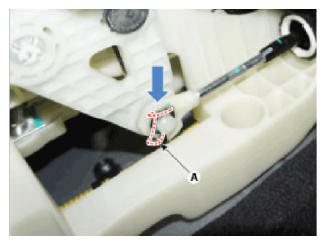

  3. Install the snap pin (A).
    G13052766Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the shift cable.

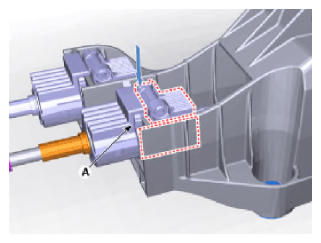

    1. Install the cable socket (A), after release the lock.
      G13052767Courtesy of HYUNDAI MOTOR AMERICA

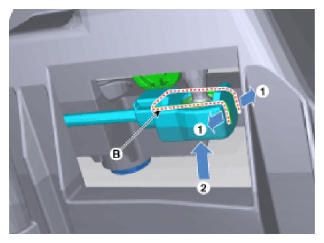

    2. Install the clip (B).
      G13052768Courtesy of HYUNDAI MOTOR AMERICA
  5. Adjust the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".
    G13052769Courtesy of HYUNDAI MOTOR AMERICA

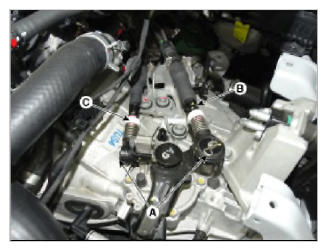

  6. Install the shift cable (B) and select cable (C), and then fixing the snap pin (A-2ea).
    G13052770Courtesy of HYUNDAI MOTOR AMERICA
  7. Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.
    G13052771Courtesy of HYUNDAI MOTOR AMERICA

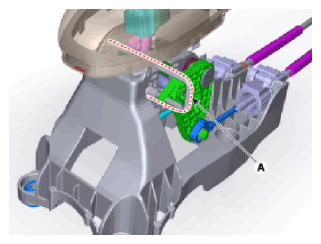

  8. Remove the shift lever 4th fixed pin (A).
    G13052772Courtesy of HYUNDAI MOTOR AMERICA
  9. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  10. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  11. Install the engine control module (ECM).

    (Refer to Engine Control System - "ECM ")

  12. Install the air cleaner and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

    CAUTION:
    • Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
    • If there is sticky feel, adjust the control cable length again.

      (Refer to Manual Transaxle Control System - "CONTROL CABLE ")
