Repair Procedures: Removal

  1. Adjust the shift lever to 4th gear.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the engine control module (ECM).

    (Refer to Engine Control System - "ECM ")

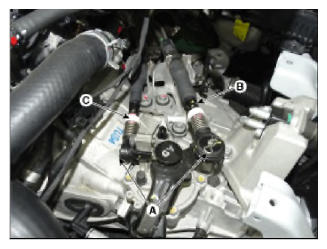

  5. Separate the shift cable (B) and the select cable (C) after removing the snap pin (A).
    G13052756Courtesy of HYUNDAI MOTOR AMERICA

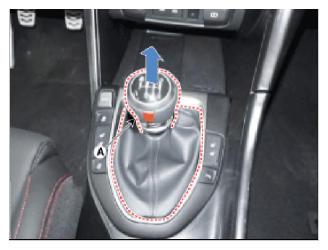

  6. Remove the shift knob & boots (A).
    G13052757Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

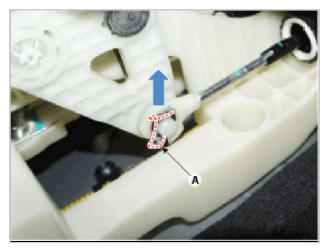

  8. Remove the snap pin (A).
    G13052758Courtesy of HYUNDAI MOTOR AMERICA

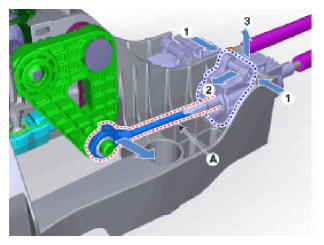

  9. Separate the select cable (A).
    G13052759Courtesy of HYUNDAI MOTOR AMERICA
  10. Separate the shift cable.

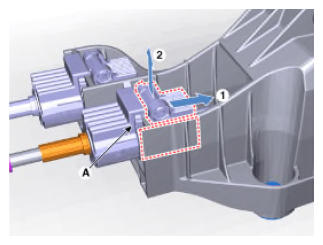

    1. Remove the cable socket (A), after release the lock.
      G13052760Courtesy of HYUNDAI MOTOR AMERICA

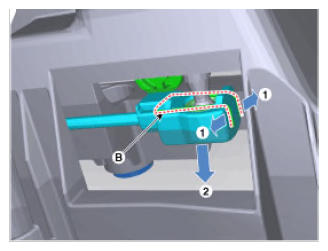

    2. Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
      G13052761Courtesy of HYUNDAI MOTOR AMERICA

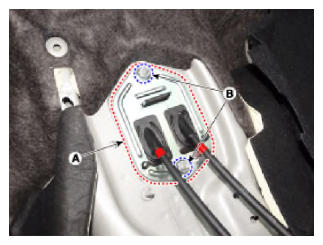

  11. Loosen the nuts (B-2ea) and then removing the cable retainer (A).
    G13052762Courtesy of HYUNDAI MOTOR AMERICA
