Repair Procedures: Removal
- Prior to replacing the TCM, check the TCM clutch compensation value with the GDS tool.
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

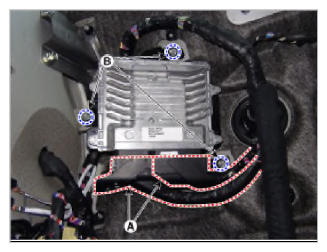

- Disconnect the TCM connector (A).
- Remove the TCM from the vehicle after removing the mounting nut (B-3 ea).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
