Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the wiring bracket (A) after releasing the fixing hooks (B).
    G14116561Courtesy of HYUNDAI MOTOR AMERICA

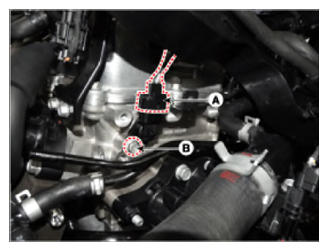

  4. Disconnect the camshaft position sensor connector (A).
  5. Remove the installation bolt (B), and then remove the sensor.
    G14116562Courtesy of HYUNDAI MOTOR AMERICA
