Electronic Throttle Control (ETC) System: Specifications: Specification

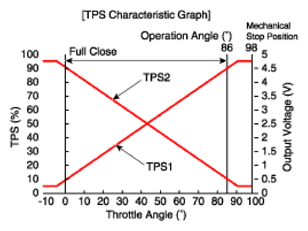

THROTTLE POSITION SENSOR - VOLTAGE SPECIFICATION

Throttle angle (°)	Output Voltage (V)
	TPS1	TPS2
0	0.50	4.50
10	0.96	4.05
20	1.41	3.59
30	1.87	3.14
40	2.32	2.68
50	2.78	2.23
60	3.23	1.77
70	3.69	1.32
80	4.14	0.86
90	4.60	0.41
98	4.65	0.35
C.T (0)	0.50	4.50
W.O.T (86)	4.41	0.59

Courtesy of HYUNDAI MOTOR AMERICA

ETC MOTOR - PART SPECIFICATION

Item	Specification
Coil Resistance (Ω)	0.3 - 100 [20°C (68°F)]
