Repair Procedures: Replacement

  1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.

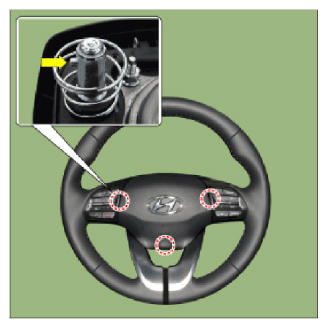

  3. Remove the driver airbag module (DAB).
    G13032246Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Insert the end of the flat tool along the guide hole.

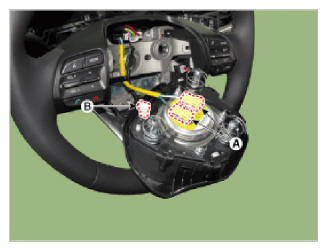

  4. Disconnect the airbag module connector (A) and horn connector (B).
    G13032247Courtesy of HYUNDAI MOTOR AMERICA

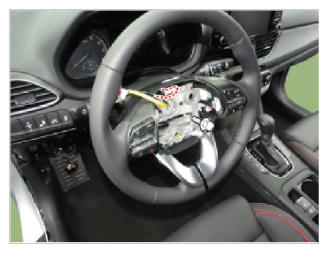

  5. Disconnect the connector and then remove the steering wheel by loosening the lock bolt.

    Tightening Torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G13032248Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the steering lock bolt.

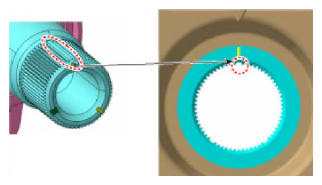

    • When assembling, match the gear teeth as the below image.
      G13032249Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.
