Engine Control System - 1.6L
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

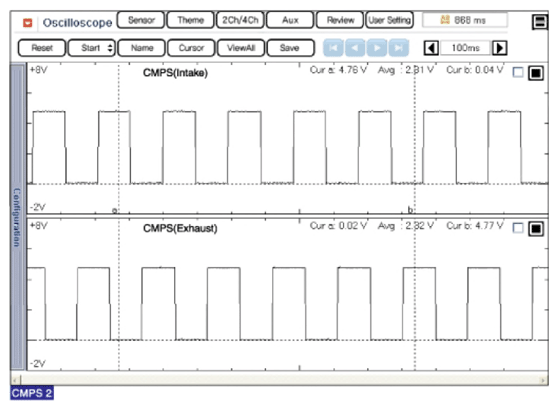

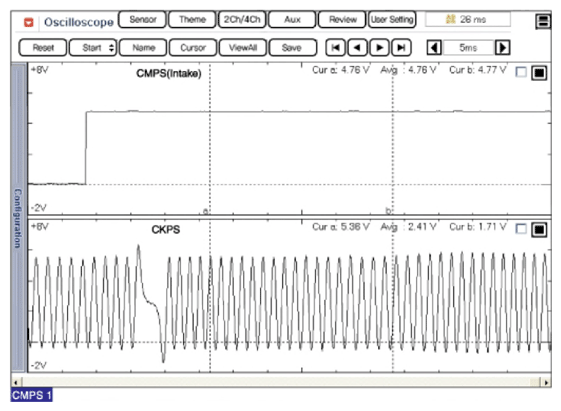

Wave Form
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
