Components Location

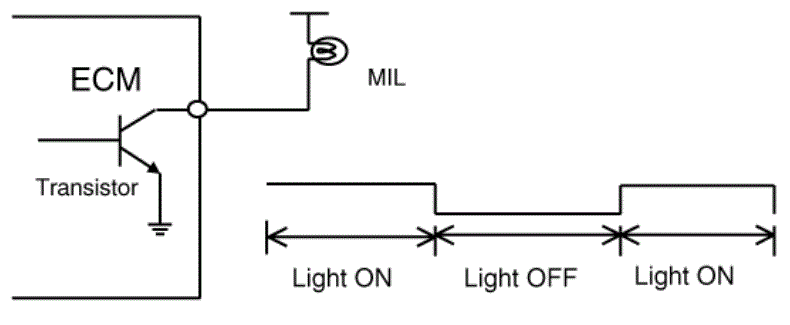

G14081527Courtesy of HYUNDAI MOTOR AMERICA

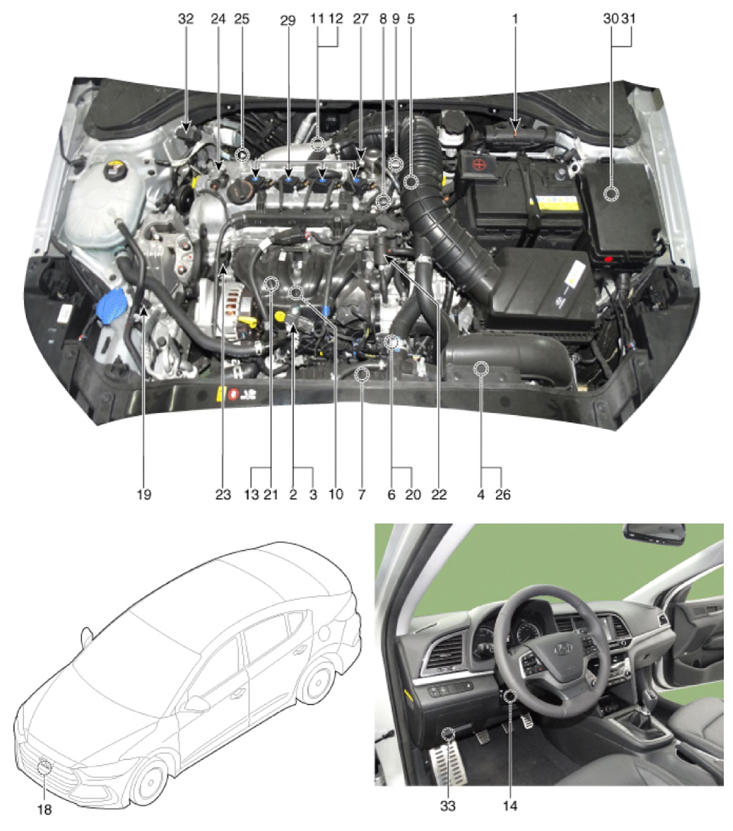

G14081528Courtesy of HYUNDAI MOTOR AMERICA

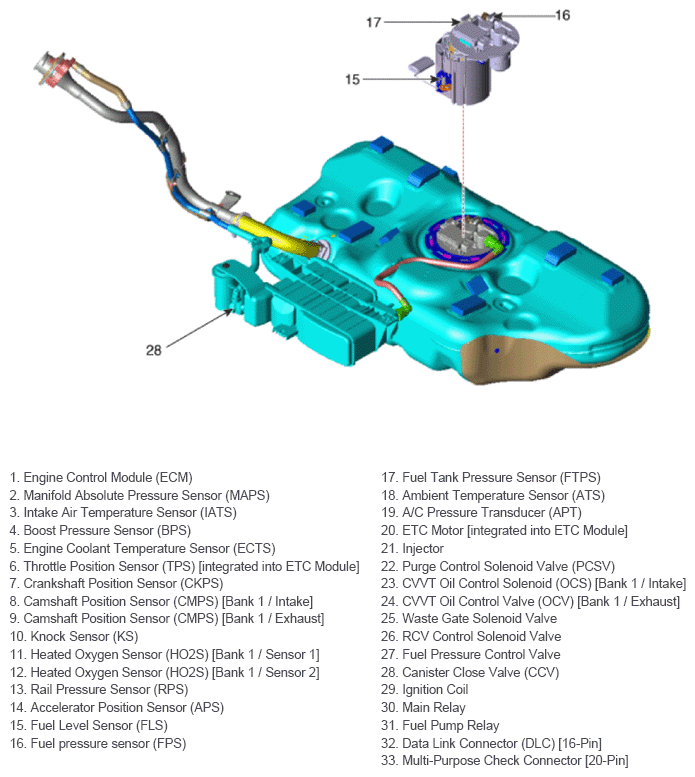

G14081529Courtesy of HYUNDAI MOTOR AMERICA

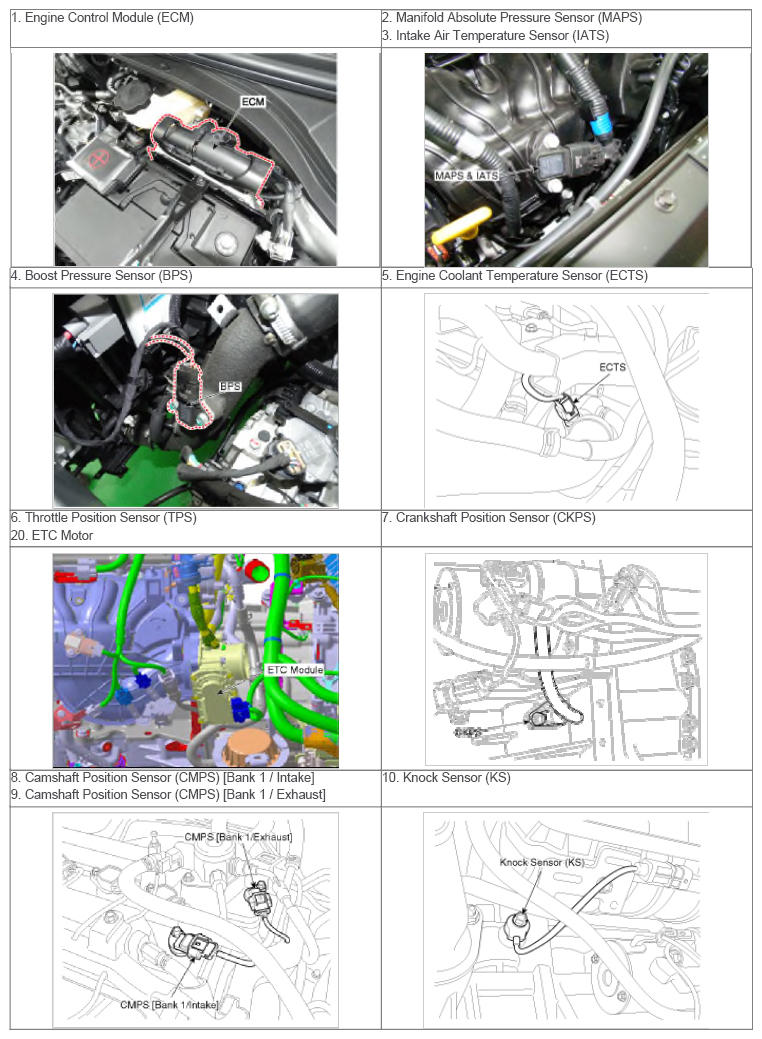

G14081530Courtesy of HYUNDAI MOTOR AMERICA

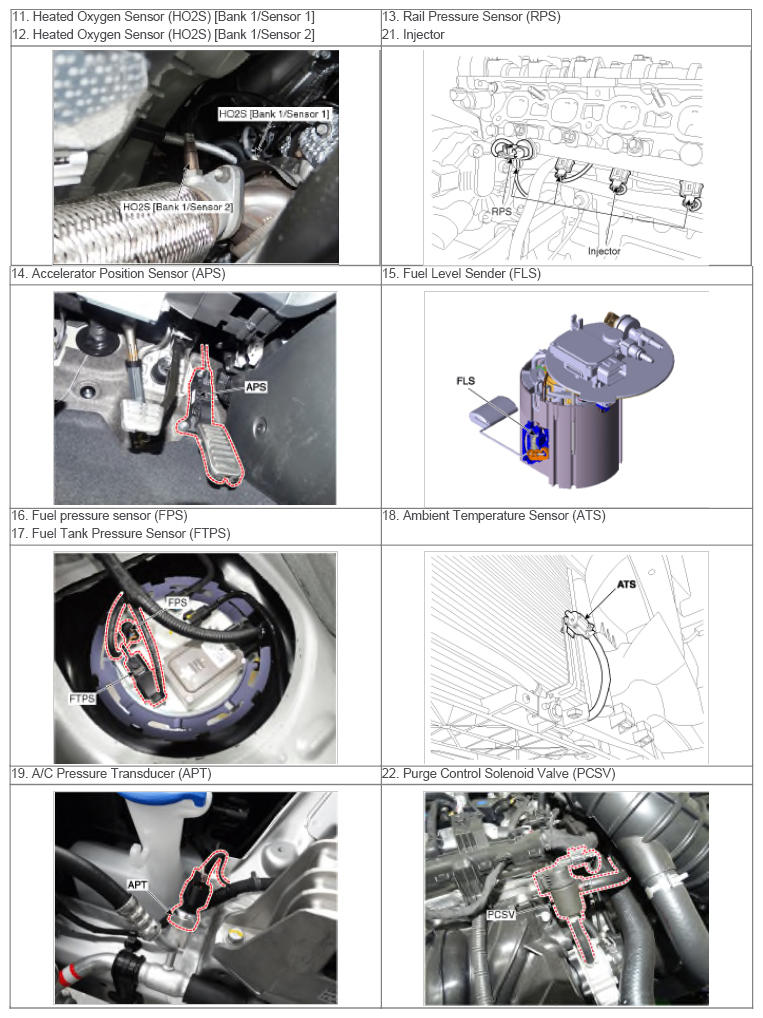

G14081531Courtesy of HYUNDAI MOTOR AMERICA

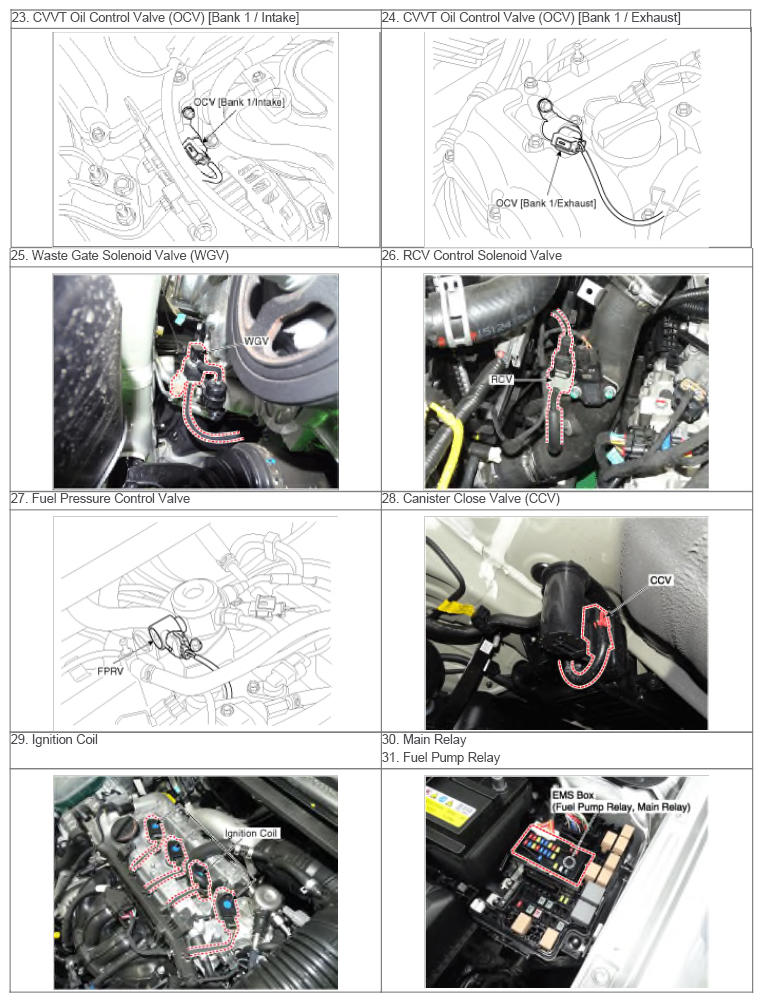

G14081532Courtesy of HYUNDAI MOTOR AMERICA
