| Fuel Pressure Gauge (09353-24100) |
Courtesy of HYUNDAI MOTOR AMERICA
|
Measuring the fuel line pressure |
| Fuel Pressure Gauge Adapter (09353-02100) |
Courtesy of HYUNDAI MOTOR AMERICA
|
Connection between the high pressure fuel pump and the fuel feed line |
| Heated Oxygen Sensor Socket Wrench (09392-1Y100) |
Courtesy of HYUNDAI MOTOR AMERICA
|
Removal and installation of the heated oxygen sensor |

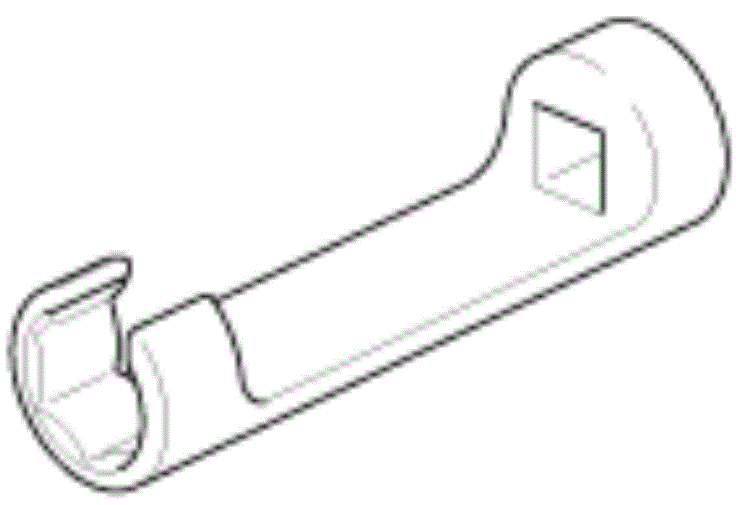

| Torque Wrench Socket (09314-3Q100) or (09314-27130) (19 mm) |
Courtesy of HYUNDAI MOTOR AMERICA
|
Removal and installation of the high pressure fuel pipe |
| Injector Combustion Seal Guide & Sizing tool (09353-2B000) |
Courtesy of HYUNDAI MOTOR AMERICA
|
Installation of the injector combustion seal |
