Components And Components Location: Components

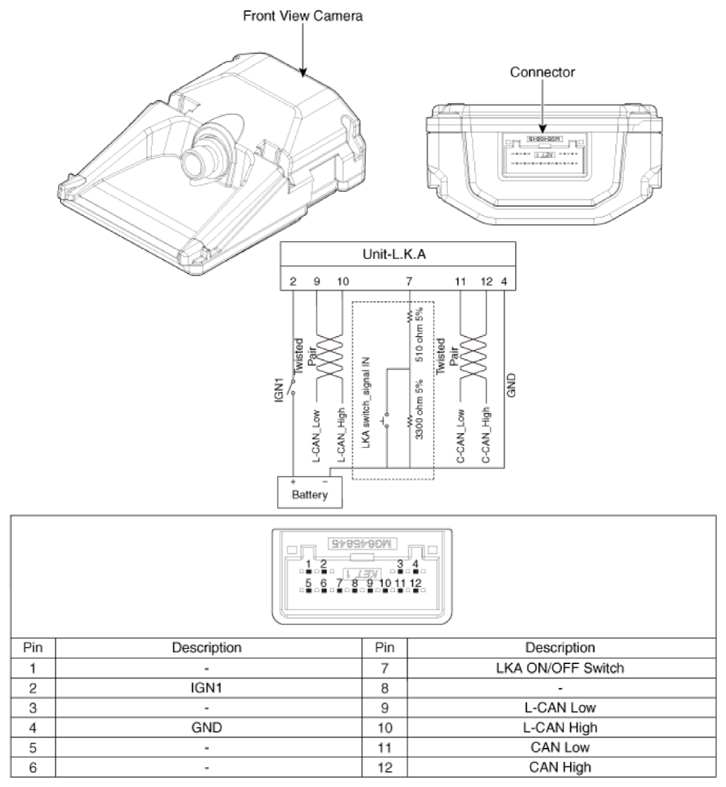

Fig 1: Front View Camera Unit Connector End View And Terminal Description
G14083782Courtesy of HYUNDAI MOTOR AMERICA
