Repair Procedures: Installation

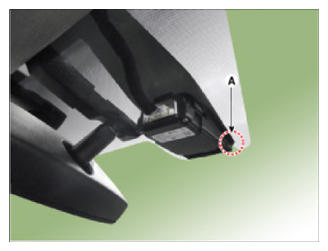

Align front view camera with windshield bracket using forward edge point (A).

Courtesy of HYUNDAI MOTOR AMERICA

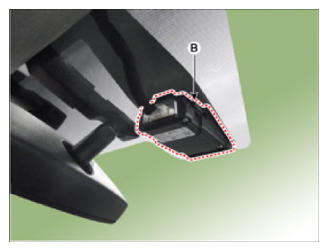

Engage snaps and pivot upward to lock point (B).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Front view camera unit is fully assembled when a single click sound is hear.

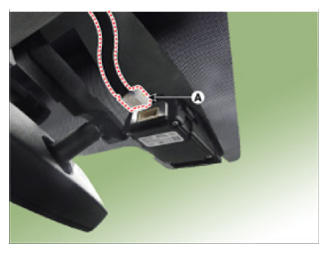

Connect the front view camera unit connector.

Courtesy of HYUNDAI MOTOR AMERICA
Connect the negative (-) battery terminal.
