Signal Waveform And Data

Courtesy of HYUNDAI MOTOR AMERICA

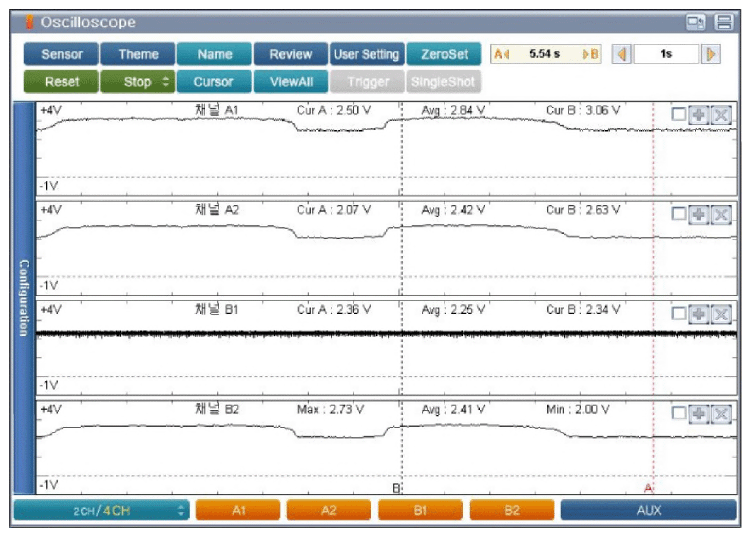

Fig.1) Normal waveform of front Heated Oxygen Sensor(S1) (engine idle).

- CH A1 (Nernst cell voltage), CH A2 (Pump cell voltage), CH B1 (Common ground), CH B2 (Compensative resistance)
