ESC Operation Mode: Notes

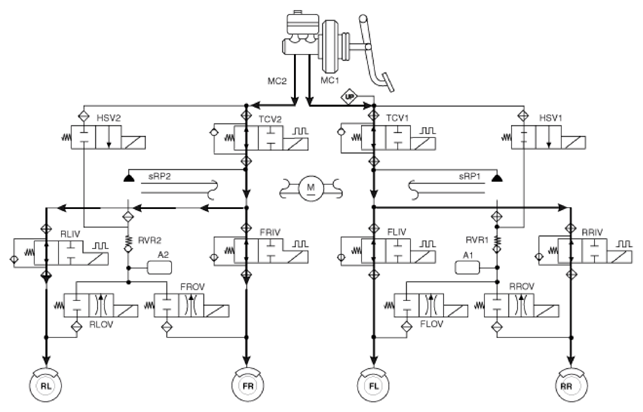

- ESC Non-operation-Normal braking.
Inlet valve (IV) Outlet valve (OV) Traction Control Valve (TCV) High pressure switch valve (HSV) Return pump Normal braking Open Close Open Close OFF NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve

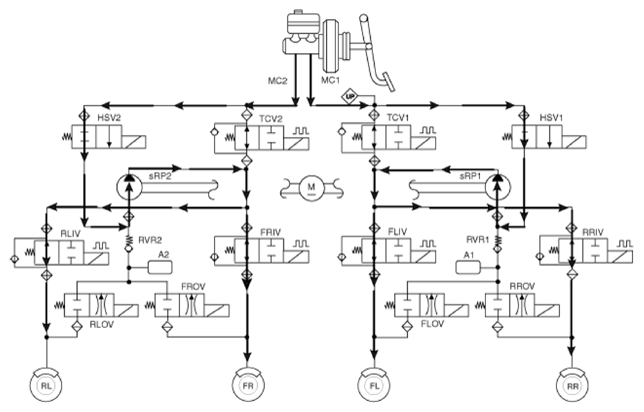

- ESC Increase Mode
Inlet valve (IV) Outlet valve (OV) Traction Control Valve (TCV) High pressure switch valve (HSV) Return pump Normal braking Open Close Close (Partial) Open ON (Motor speed control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve

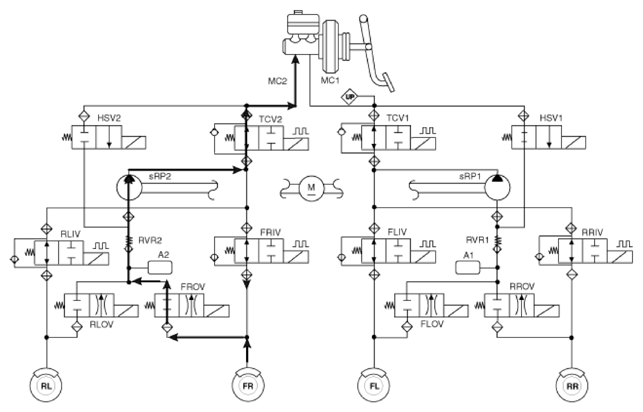

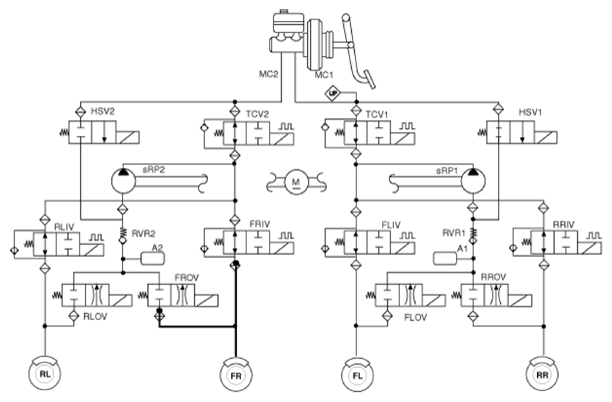

- ESC Decrease Mode (FR is only controlled)
Inlet valve (IV) Outlet valve (OV) Traction Control Valve (TCV) High pressure switch valve (HSV) Return pump Normal braking Close Open Close (Partial) Open ON (Motor speed low control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve
