Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the knock sensor connector (A).
    G14084500Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the intake manifold. (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

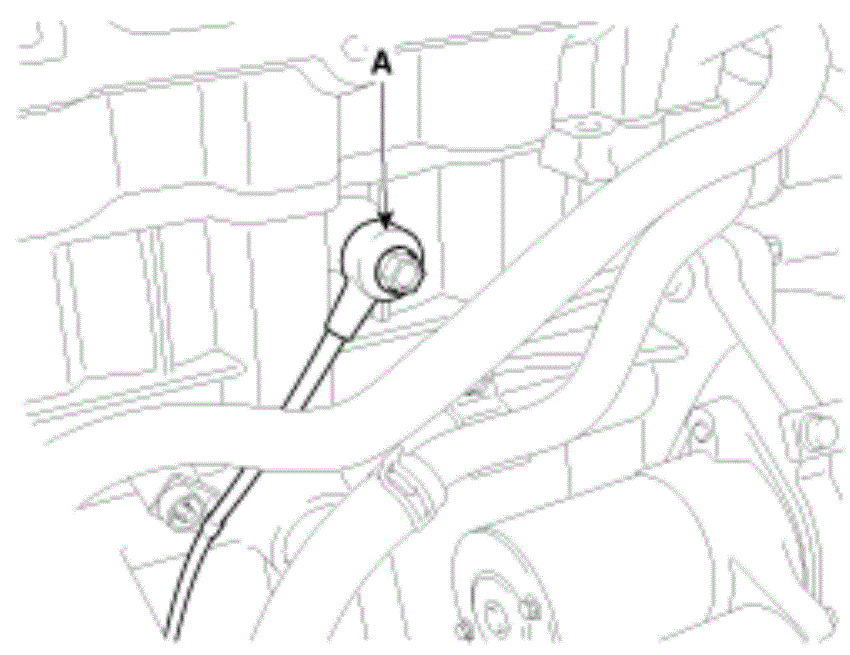

  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
    G14084501Courtesy of HYUNDAI MOTOR AMERICA
