Circuit Diagram

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

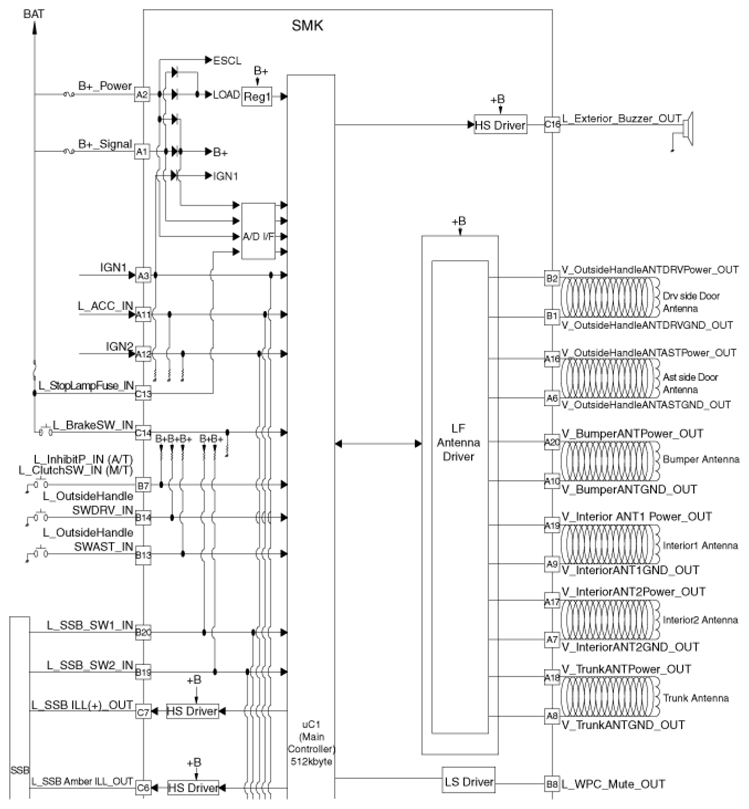

G12975033Courtesy of HYUNDAI MOTOR AMERICA

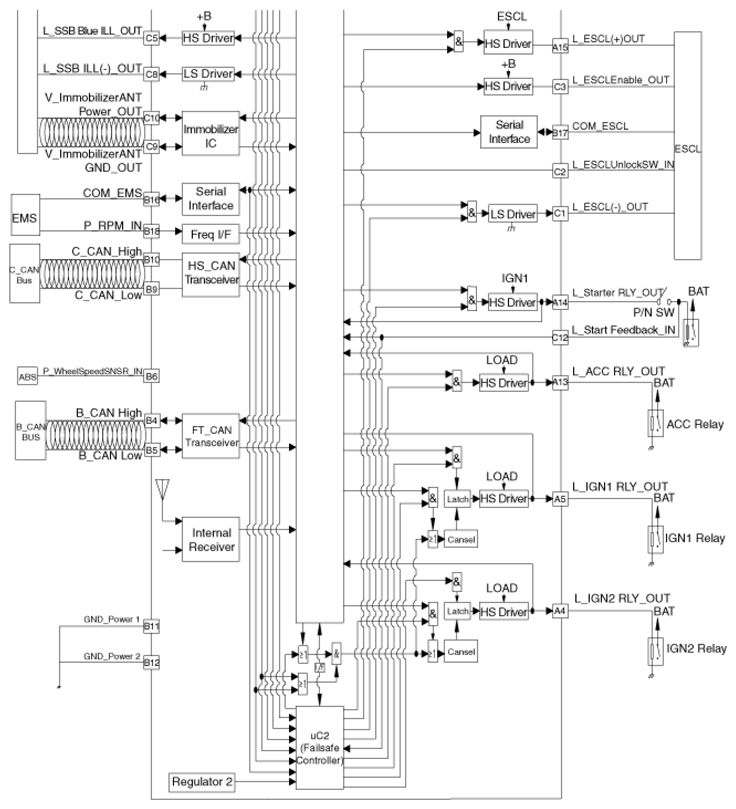

G12975034Courtesy of HYUNDAI MOTOR AMERICA
