With Paddle shift

  1. Remove the paddle shift switch.
    G14082133Courtesy of HYUNDAI MOTOR AMERICA

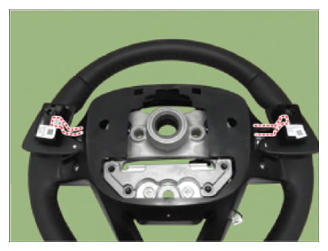

  2. Disconnect the connector and then remove the switch.
    G14082134Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the screw and then remove the lower cover.
    G14082135Courtesy of HYUNDAI MOTOR AMERICA

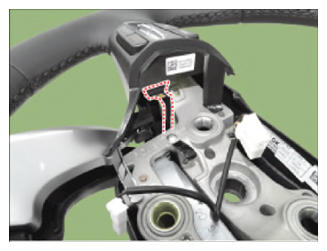

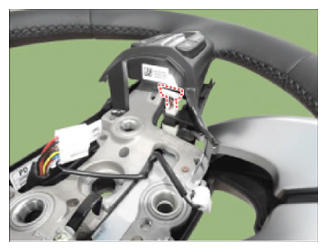

  4. Disconnect the remote control switch connector.
    G14082136Courtesy of HYUNDAI MOTOR AMERICA
    G14082137Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the screw.
    G14082138Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the screw and then remove the remote control switch.
    G14082139Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the steering wheel upper cover.
    G14082140Courtesy of HYUNDAI MOTOR AMERICA
