Repair Procedures: Installation
- Check that the gear is shifted to "N".

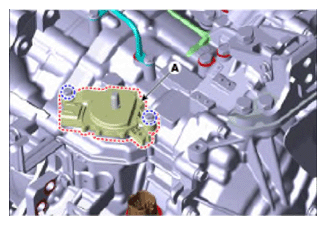

- Lightly tighten the bolts after installing the position switch (A).

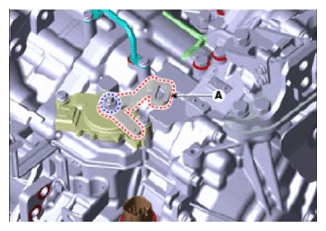

- Lightly tighten the nut after installing the manual control lever (A).

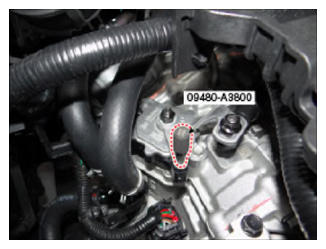

- Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the SST position switch guide pin (09480 - A3800).

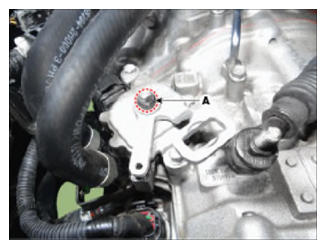

- Tighten the manual control lever nut (A) with specified toque.
Tightening torque: 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)

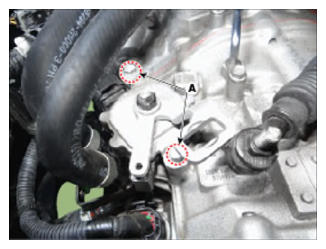

- Tighten the position switch bolts (A) with specified toque.
Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

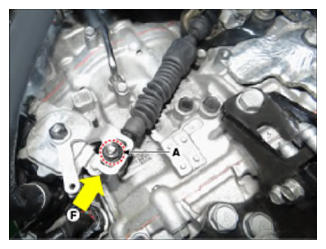

- Push nut (A) lightly to "F" direction shown in illustration to eliminate free play of shift cable.
- Tighten the nut (A) with the specified torque.
Tightening torque: 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)
- Remove the SST (09480-A3800) from the adjustment hole.

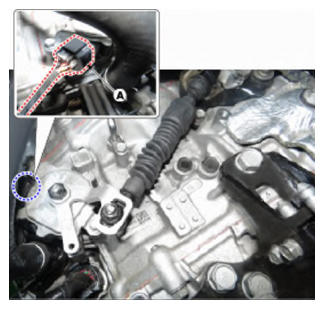

- Connect the position switch connector (A).
- Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
