Repair Procedures: Installation

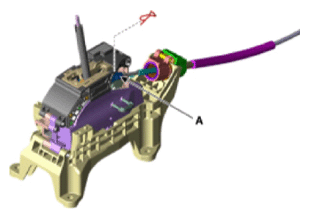

- Tighten the nuts (A) and then Install the shift cable retainer.
Tightening torque: 11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)
NOTE:- Install the cable after placing the shift lever and the manual control lever in the N position.

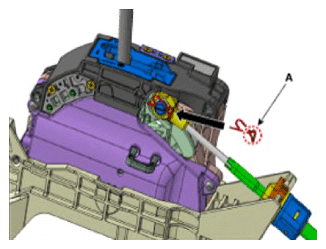

- Install the shift cable (A) in the shifter lever.CAUTION:
- Lug (A) must assemble upward.
- Bending area (A) must assemble the front.

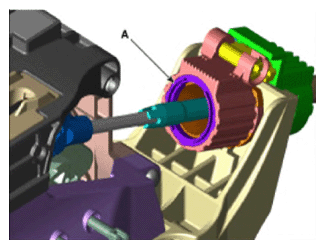

- Push in the cable socket at bracket of AT lever and must confirm that assembly sound and portion (A) of sock protrude from cap of socket.
- Portion (A) located inside the cap before assembled.
- Portion (A) must protrude after socket assembled.
- Lug (A) must assemble upward.
- Push shift cable (B) lightly to "F" direction shown in illustration to eliminate free play of shift cable.

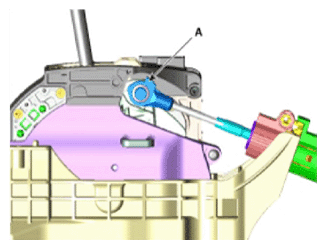

- Tighten the nut (A) to the specified torque.
Tightening torque: 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)
CAUTION:- Replace the cable clip with new clip.
- Install the airbag control module.
(Refer to Restraint - "SRS CONTROL MODULE (SRSCM) ")
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")
- Install the air cleaner and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY TRAY , and BATTERY ")
CAUTION:- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
