Repair Procedures: Installation
- To install, reverse the removal procedures.
NOTE:

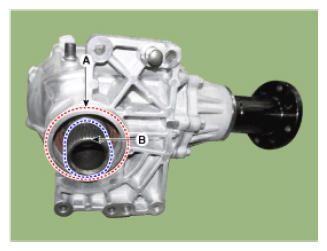

- Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
- Smear and cover splines (B) with molybdenum type high pressure grease.
GREASE SPL-1 equivalent (MS511-07)
- Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B) each other.
