[Transfer Assembly -> Transaxle]

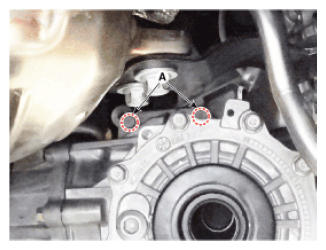

  1. Loosen the transfer assembly upper mounting bolts (A).
    G12992505Courtesy of HYUNDAI MOTOR AMERICA

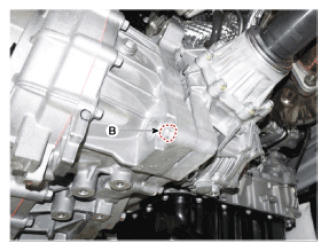

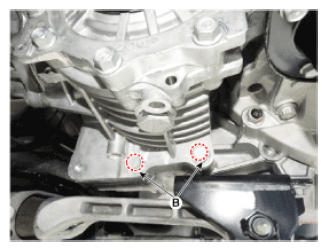

  2. Loosen the transfer assembly lower mounting bolts (B).
    G12992506Courtesy of HYUNDAI MOTOR AMERICA

    [Transaxle -> Transfer assembly]

    G12992507Courtesy of HYUNDAI MOTOR AMERICA

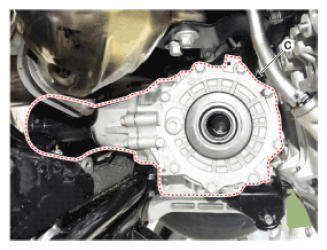

  3. Remove the transfer assembly (C) from the transaxle assembly.
G12992508Courtesy of HYUNDAI MOTOR AMERICA

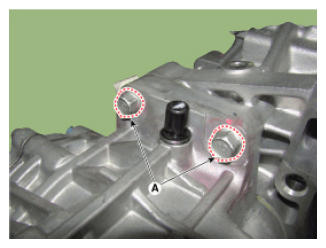

  1. Loosen the transfer assembly upper mounting bolts (A).
    G12992511Courtesy of HYUNDAI MOTOR AMERICA

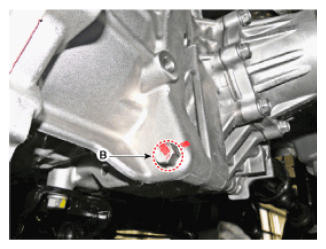

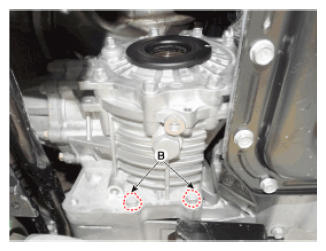

  2. Loosen the transfer assembly lower mounting bolts (B).
    G12992512Courtesy of HYUNDAI MOTOR AMERICA

    [Transaxle assembly -> Transfer]

    G12992513Courtesy of HYUNDAI MOTOR AMERICA

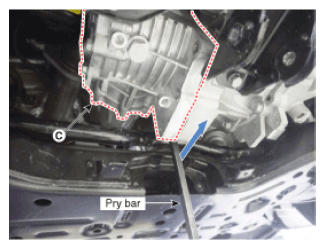

  3. Remove the transfer assembly (C) after separate the transaxle assembly with using a pry bar from the sub frame.
G12992514Courtesy of HYUNDAI MOTOR AMERICA
