Components Location

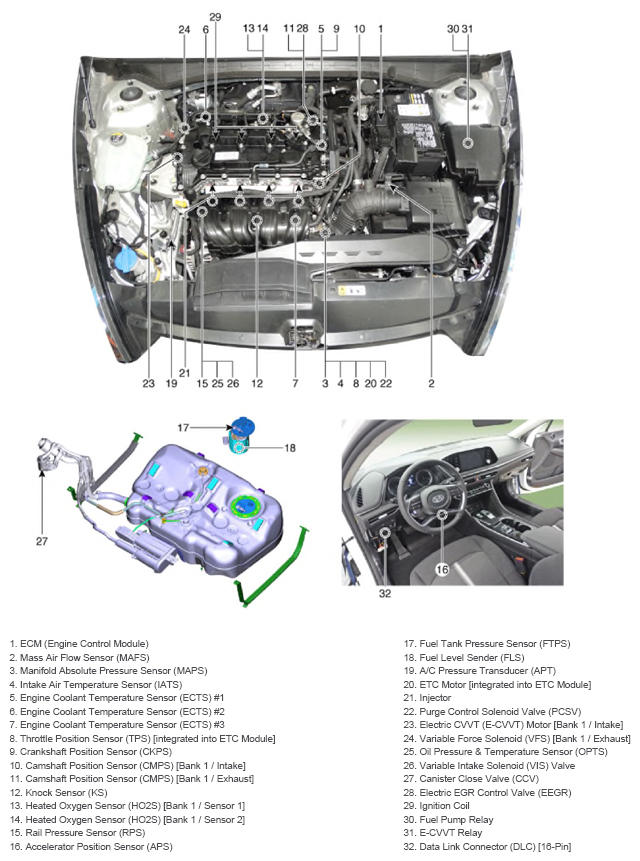

G14528191Courtesy of HYUNDAI MOTOR AMERICA

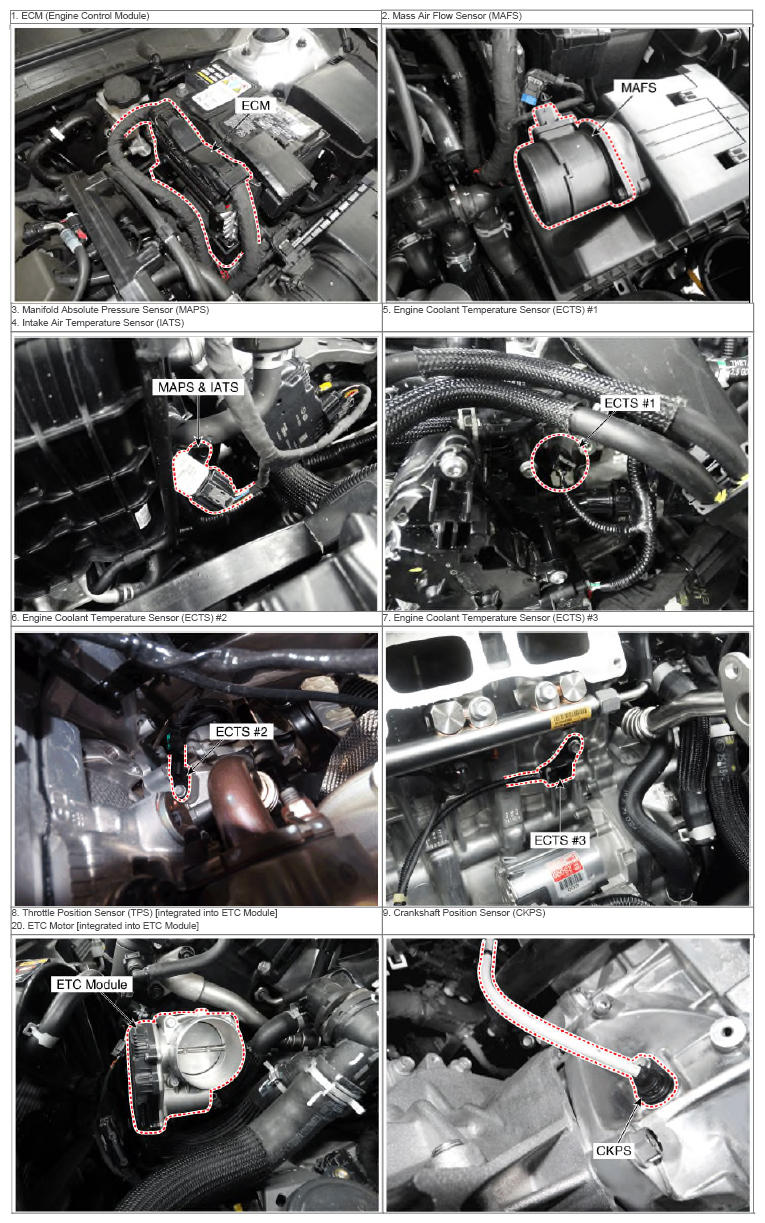

G14528192Courtesy of HYUNDAI MOTOR AMERICA

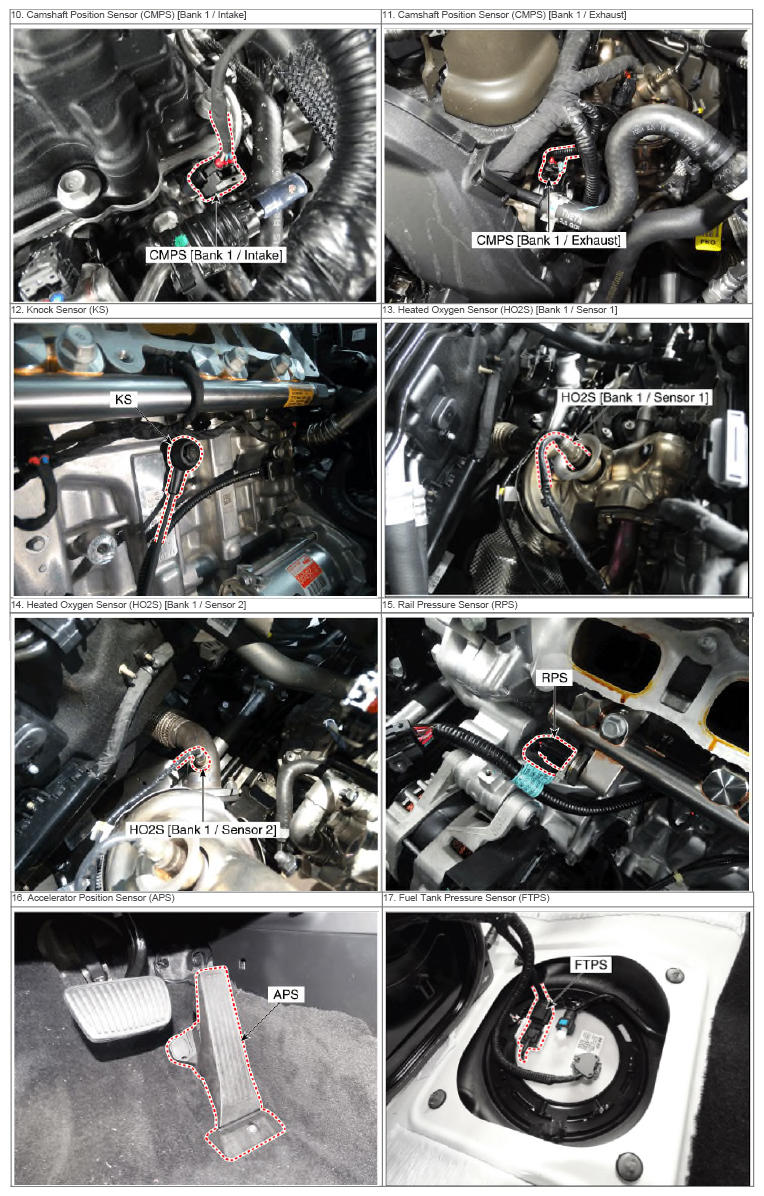

G14528193Courtesy of HYUNDAI MOTOR AMERICA

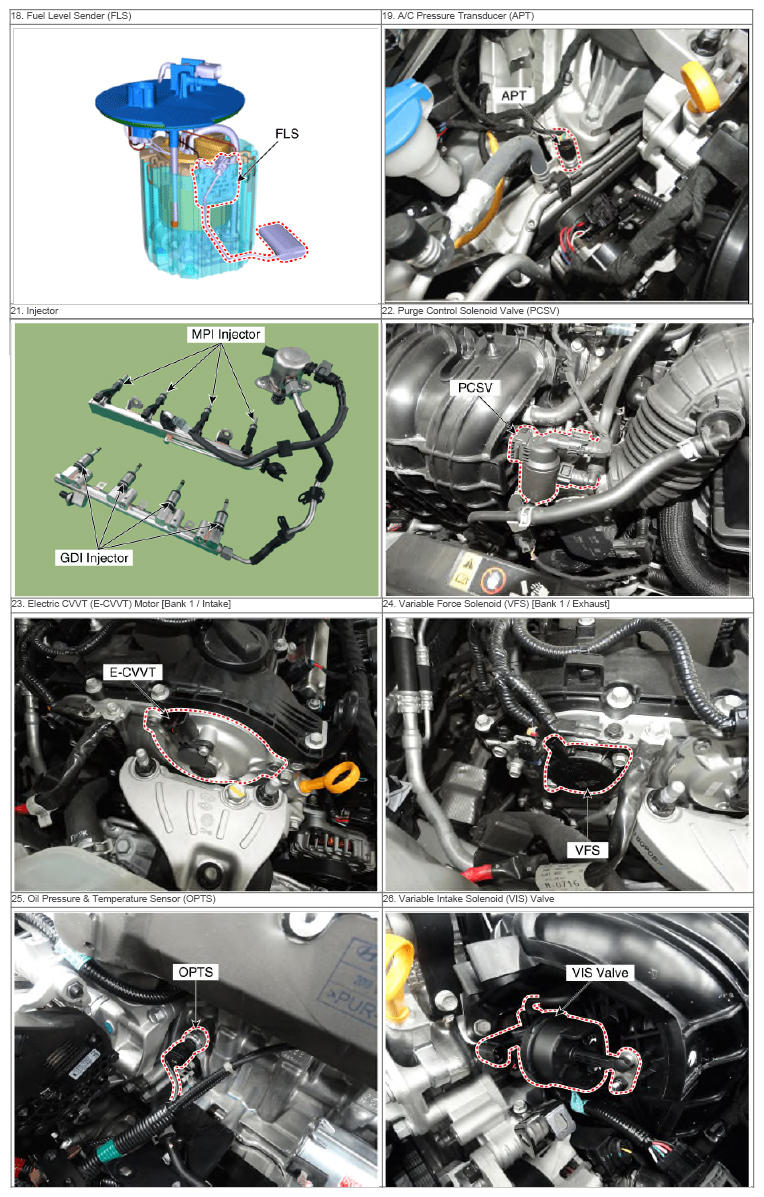

G14528194Courtesy of HYUNDAI MOTOR AMERICA
G14528195Courtesy of HYUNDAI MOTOR AMERICA
