Repair Procedures: Removal
Information
CAUTION:

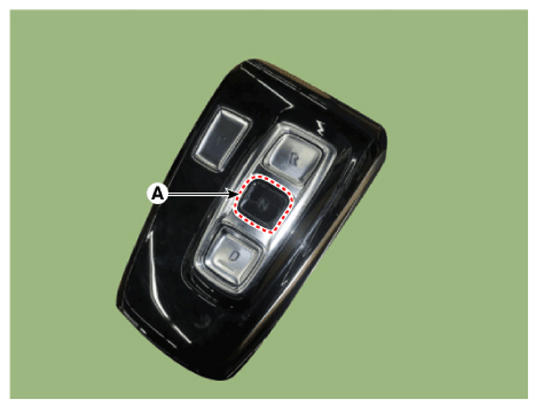

- Before removal, press the brake pedal while the ignition switch is ON and press the N button (A) for a long time to position it in the N position, then remove the battery (-) terminal.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

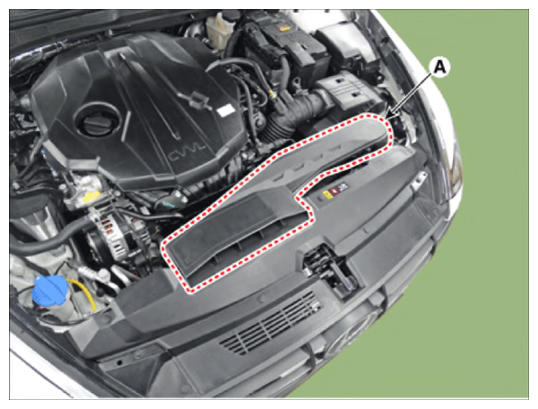

- Remove the air duct (A).
- Remove the air cleaner assembly.

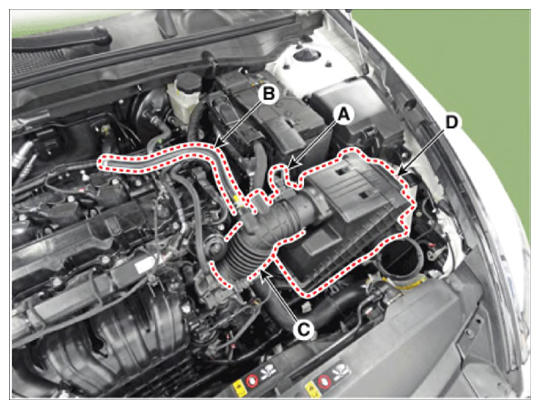

- Disconnect the Mass Air Flow Sensor (MAFS) connector (A).
- Separate the bleeder hose (B).
- Separate the intake hose (C).
- Remove the air cleaner assembly (D).
Tightening torque :
Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

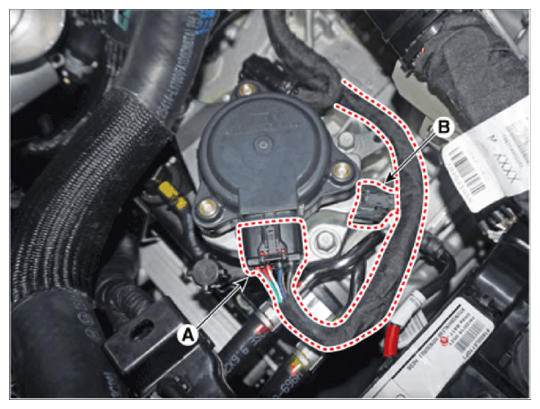

- Disconnect the electronic shift actuator connector (A).
- Disconnect the position sensor connector (B).

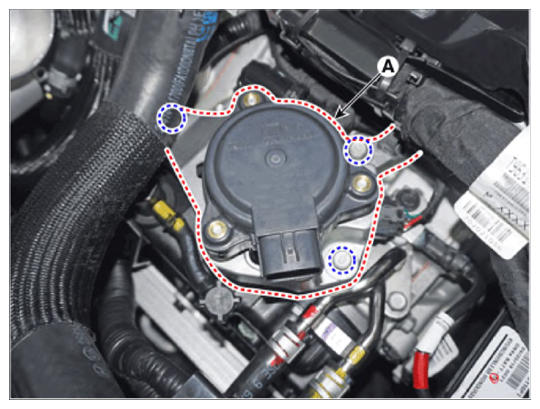

- Loosen the mounting bolts and then removing the electronic shift actuator (A).

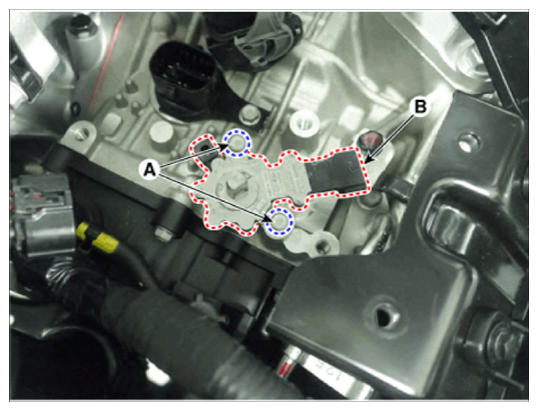

- Loosen the mounting bolts (A) and then removing the position sensor (B).
