Repair Procedures: Removal

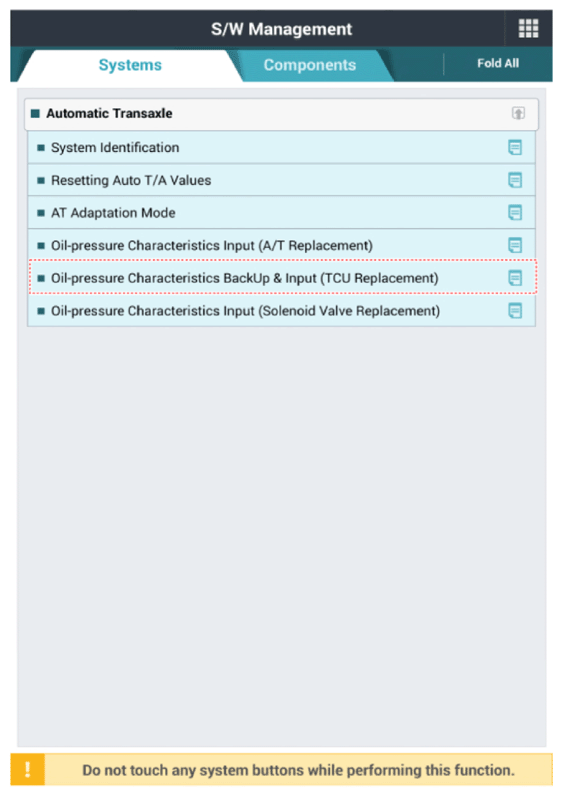

Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.

Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF and disconnect the negative (-) battery cable.

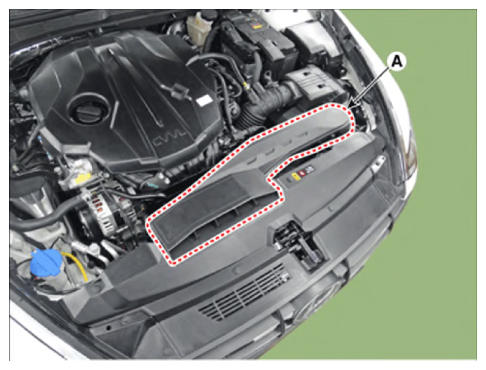

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

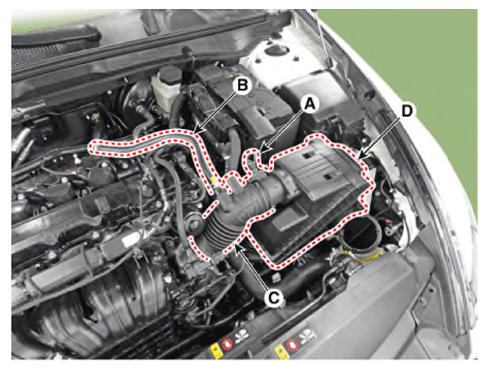

Remove the air cleaner assembly.
1. Disconnect the Mass Air Flow Sensor (MAFS) connector (A).
2. Separate the bleeder hose (B).
3. Separate the intake hose (C).
4. Remove the air cleaner assembly (D).
Tightening torque :

Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

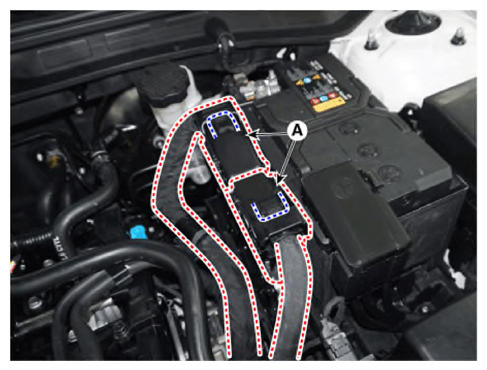

Disconnect the TCM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

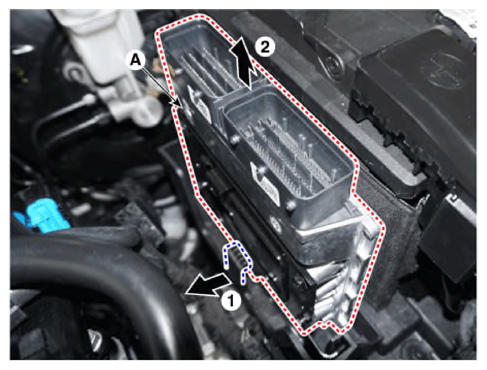

Pull the clip and then removing the TCM (A).

Courtesy of HYUNDAI MOTOR AMERICA
