Monitor GDS Data
- Connect a GDS to DLC (Data Link Cable).
- Turn the ignition switch ON.

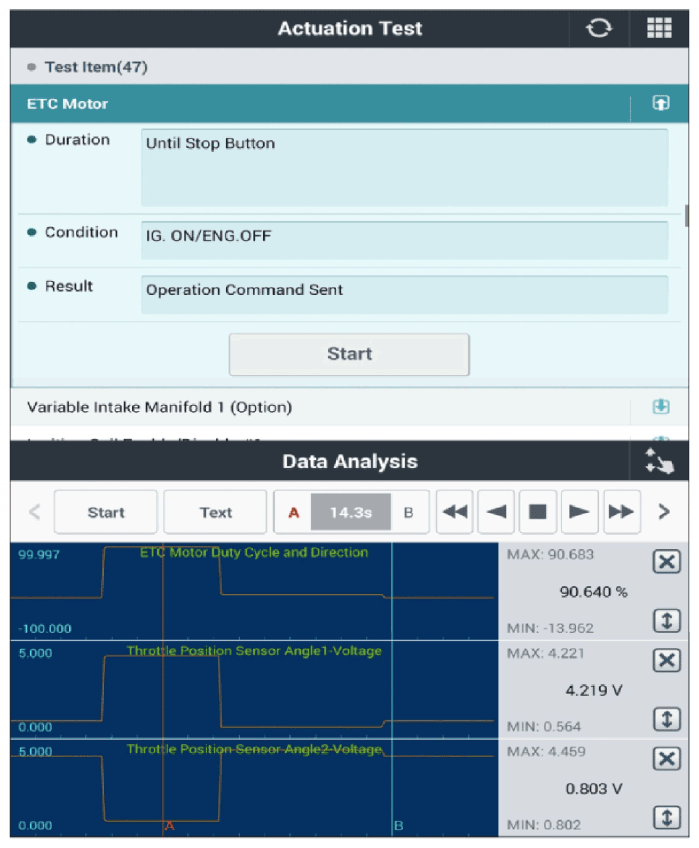

- Actuate the "ETC Motor" using the GDS.
(During actuation, monitor the voltage of TPS (Throttle Position Sensor) 1 and 2 and the ETC motor duty on "Current Data.")
- Does the actuation work properly? Is the sensor output normal?
■ Specification
- Are the parameters displayed correctly?
YES
- Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next step as below.
