Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

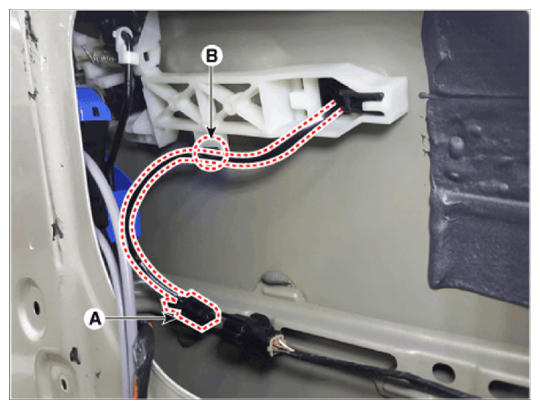

  3. Disconnect the front door outside handle connector (A) and then remove the wiring mounting clip (B).
    G14078627Courtesy of HYUNDAI MOTOR AMERICA

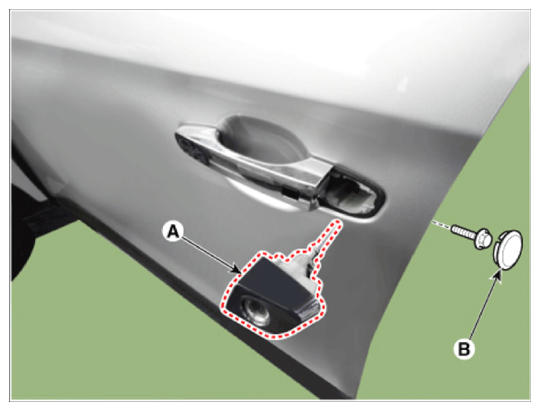

  4. Remove the door outside handle cover (A) after separating the plug hole from the door and loosening the mounting bolt.
    G14078628Courtesy of HYUNDAI MOTOR AMERICA

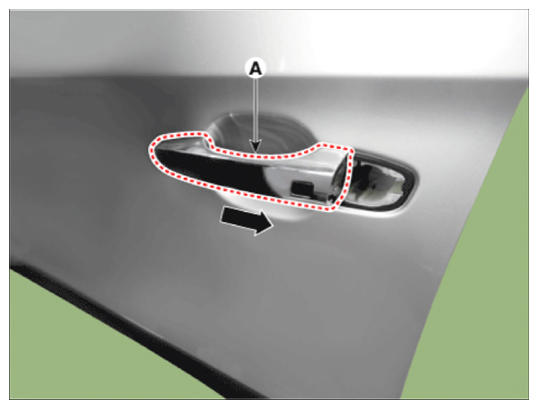

  5. Remove the outside handle (A) by sliding it rearward.
    G14078629Courtesy of HYUNDAI MOTOR AMERICA
