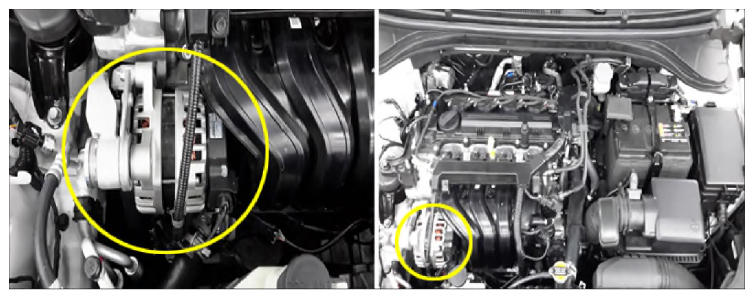

Component Location: Generator
Generator
Generator in which there is a communication regulator in order to compensate current loss resulting from repetitive starting. The Generator is duty controlled as current control by ECM with the battery voltage, current, temperature information from battery sensor. The more electrical load, the higher duty output.
