Components And Components Location: Components

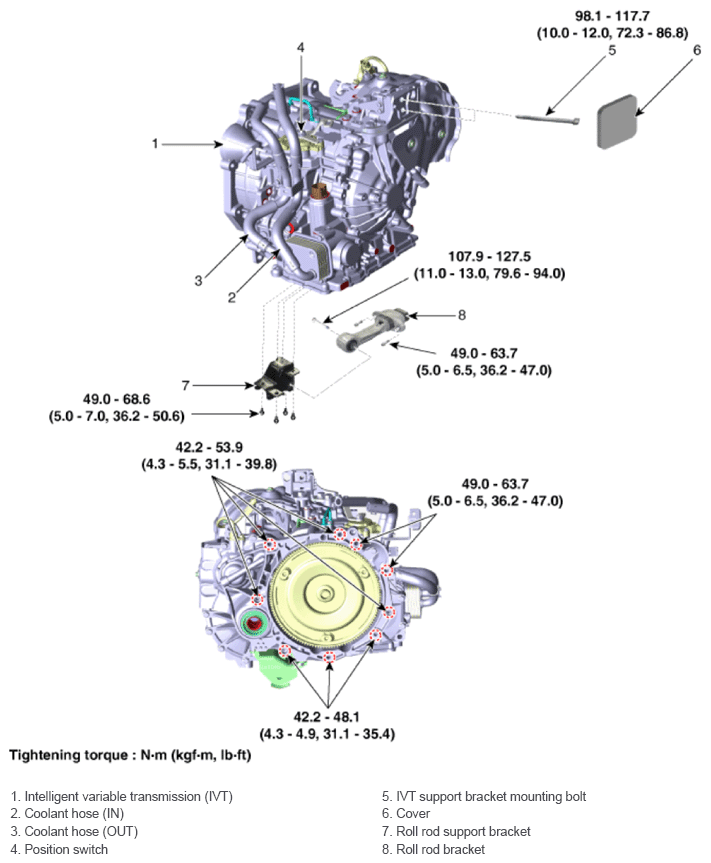

Fig 1: Intelligent Variable Transmission Components Location With Torque Specifications
G14077287Courtesy of HYUNDAI MOTOR AMERICA
