Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Shift the gear to "N".
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

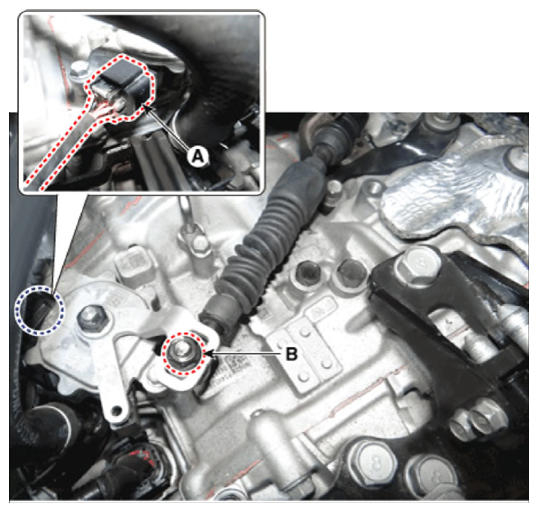

- Disconnect the position switch connector (A) and loosen the shift cable mounting nut (B).

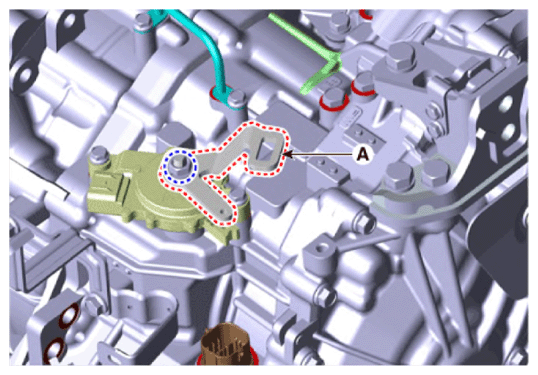

- Remove the manual control lever (A) and the washer after removing a nut.

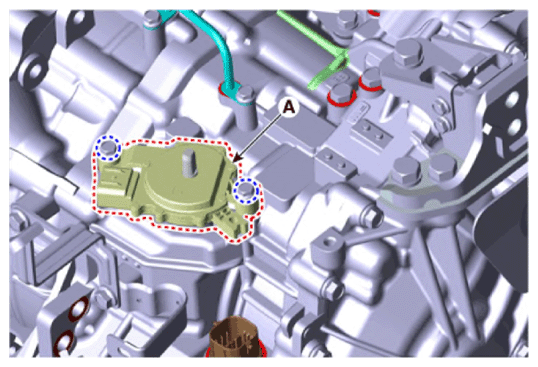

- Remove the position switch (A) after removing the bolts.
