Components Location

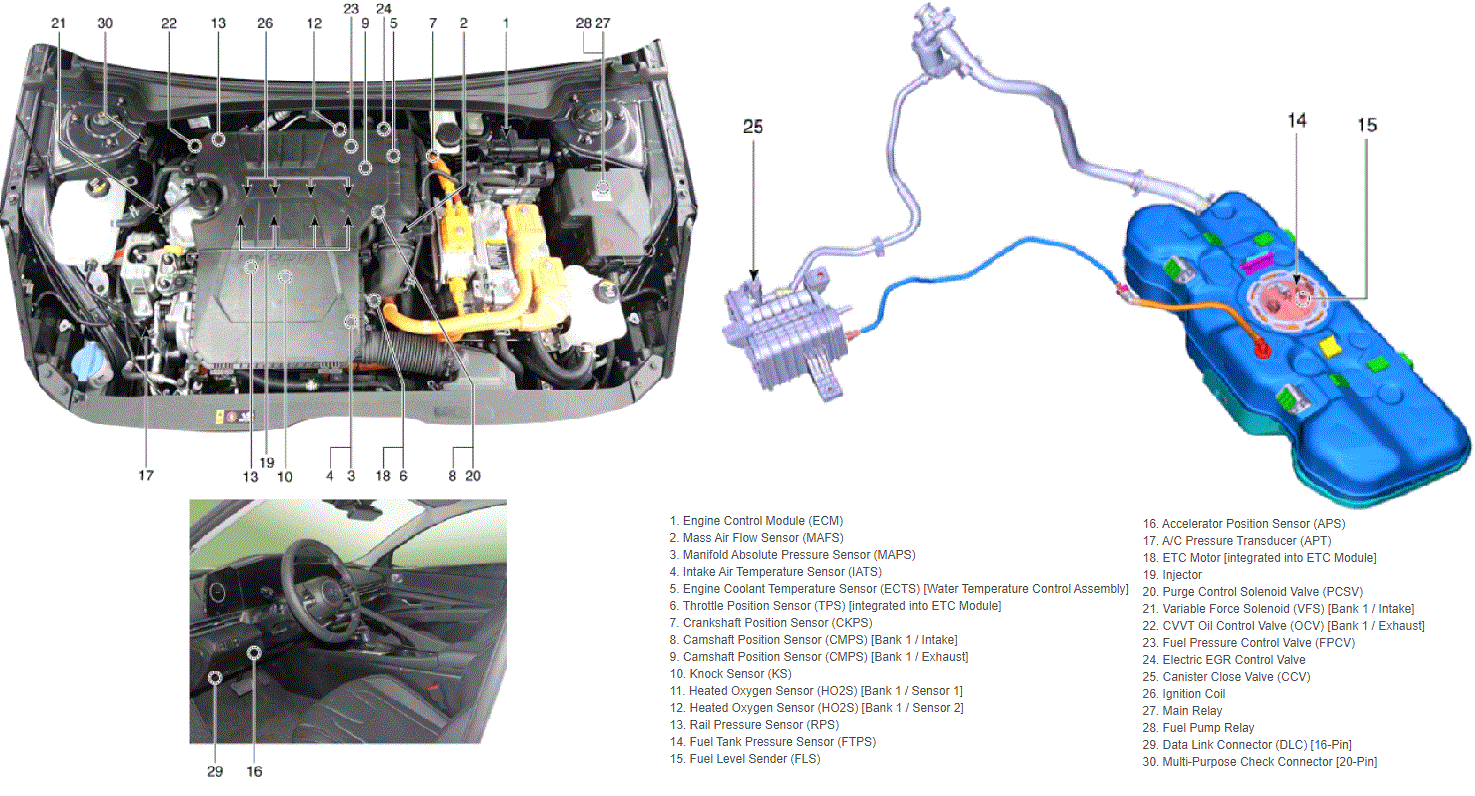

G16077768Courtesy of HYUNDAI MOTOR AMERICA

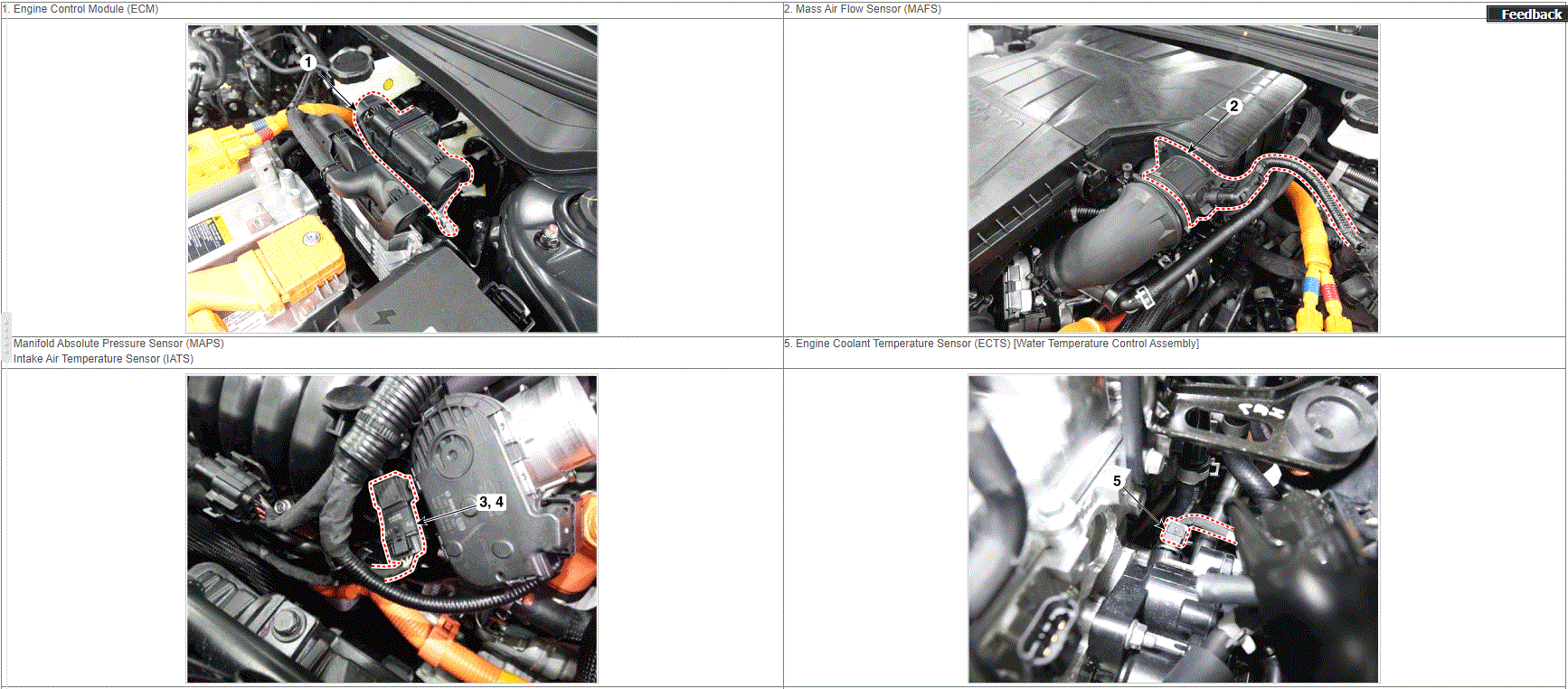

G16077769Courtesy of HYUNDAI MOTOR AMERICA

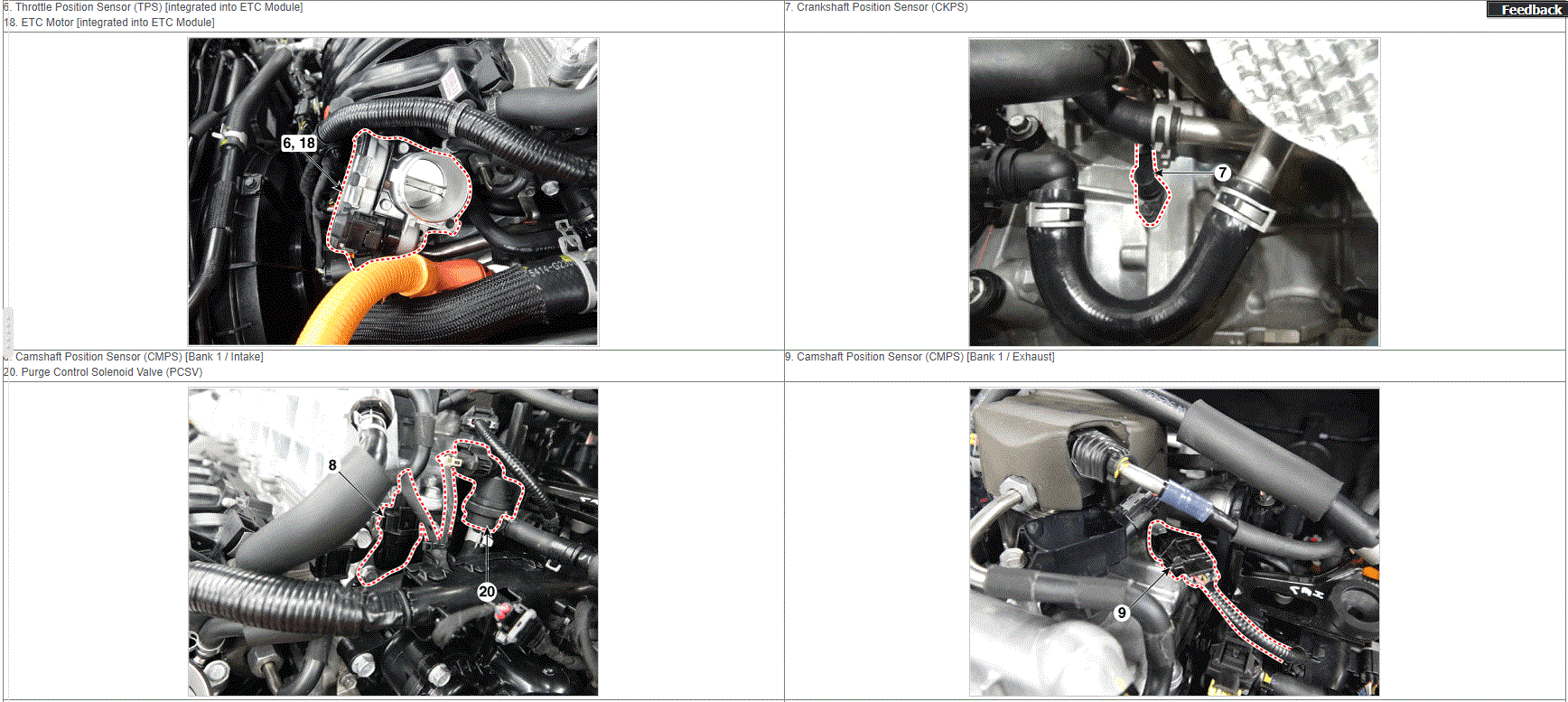

G00594816Courtesy of HYUNDAI MOTOR AMERICA

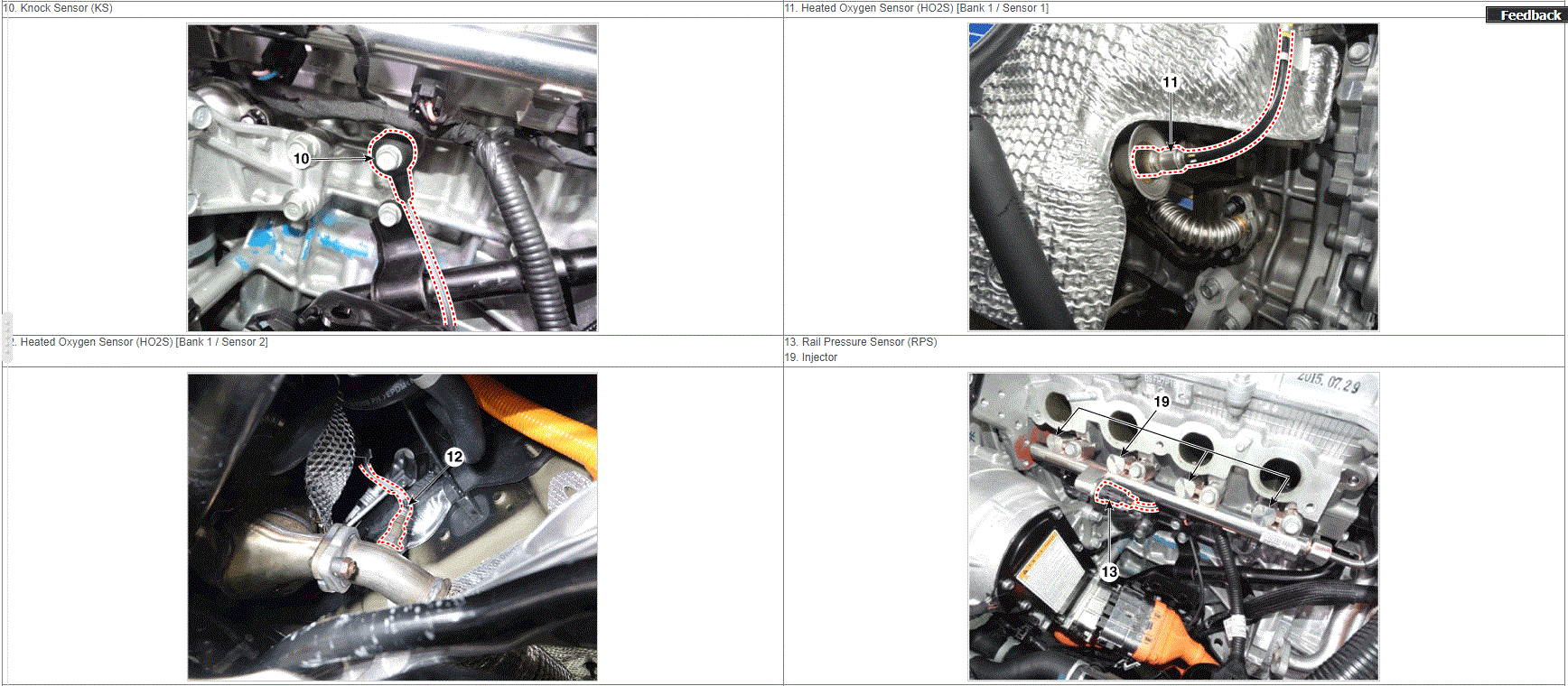

G16077770Courtesy of HYUNDAI MOTOR AMERICA

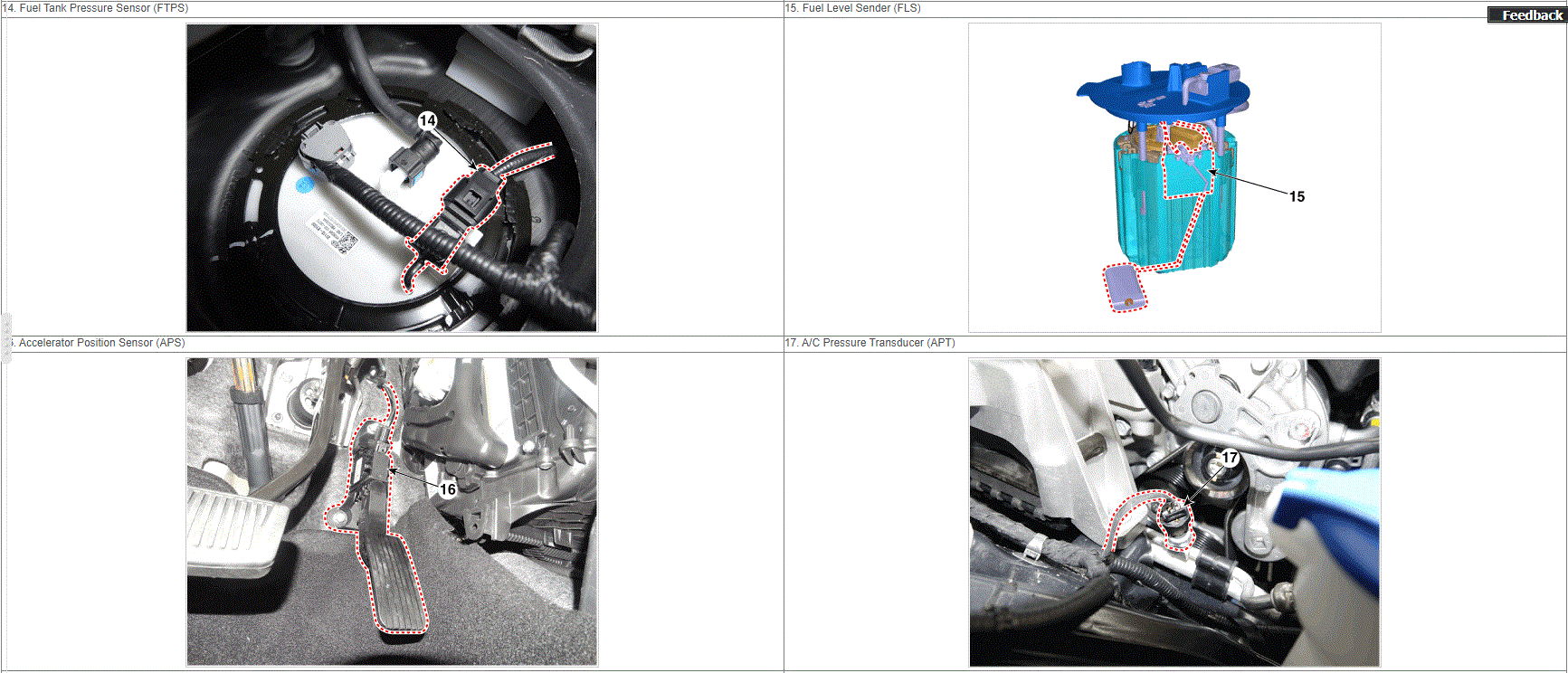

G00594817Courtesy of HYUNDAI MOTOR AMERICA

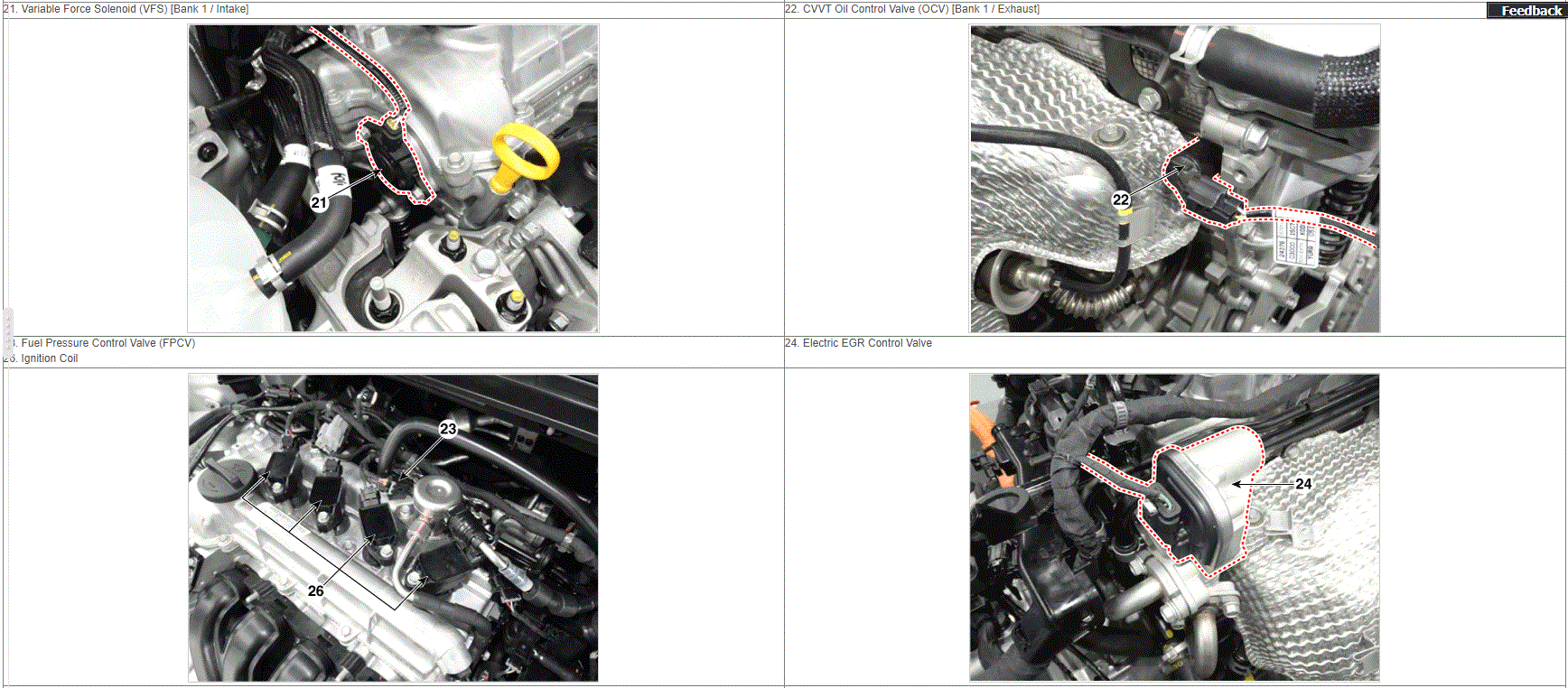

G16077771Courtesy of HYUNDAI MOTOR AMERICA

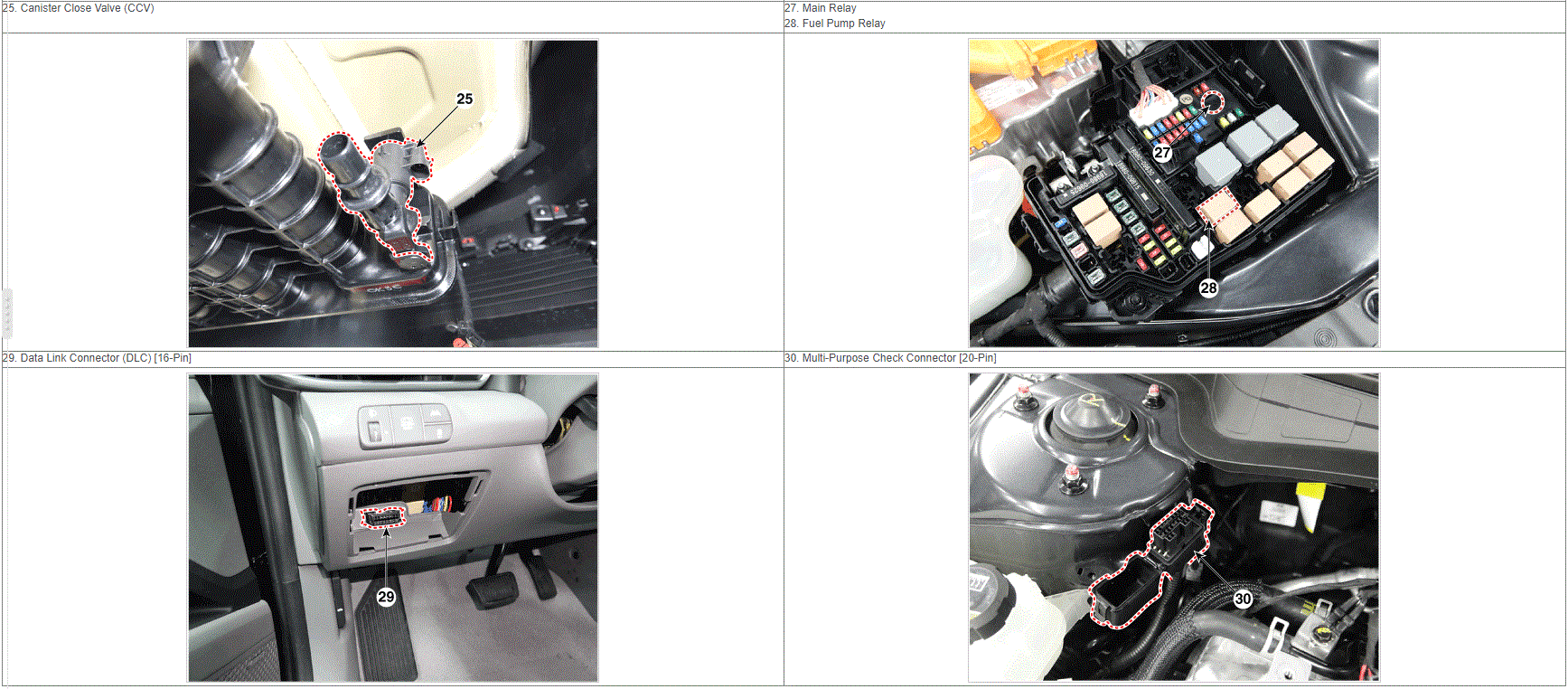

G00594818Courtesy of HYUNDAI MOTOR AMERICA
