Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
20.0 (0.20, 2.9) 0.79
46.7 (0.47, 6.77) 1.84
106.7 (1.09, 15.5) 4.212

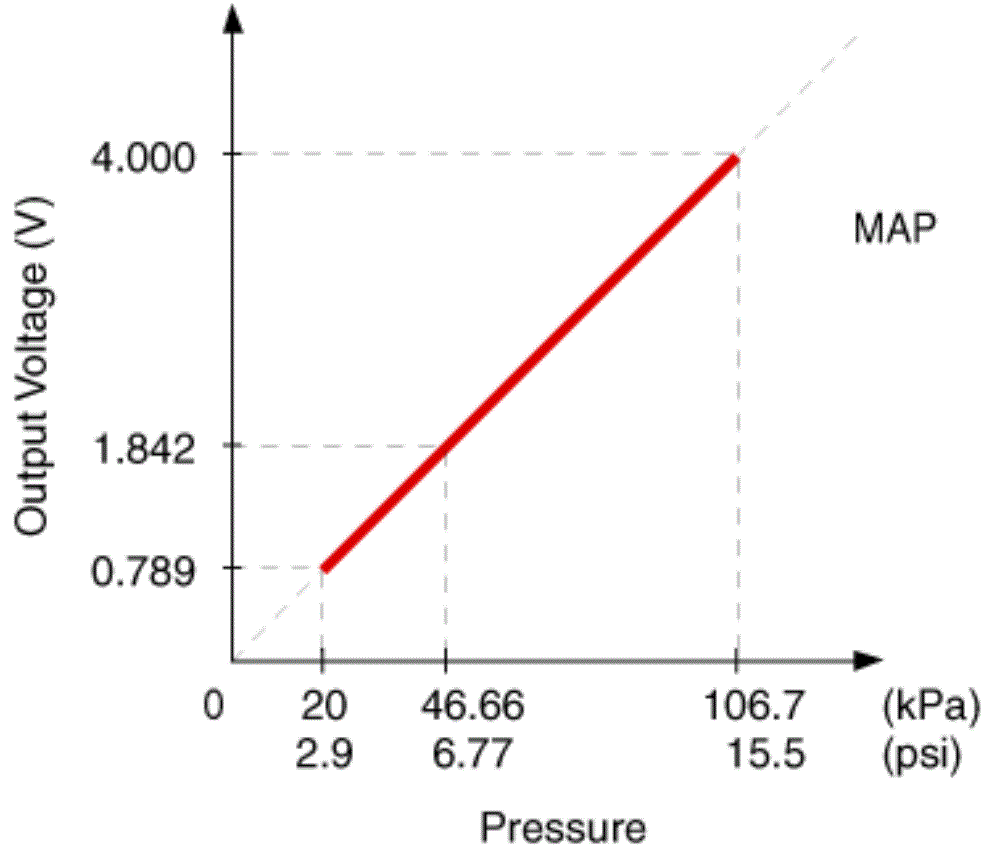

G16077790Courtesy of HYUNDAI MOTOR AMERICA
