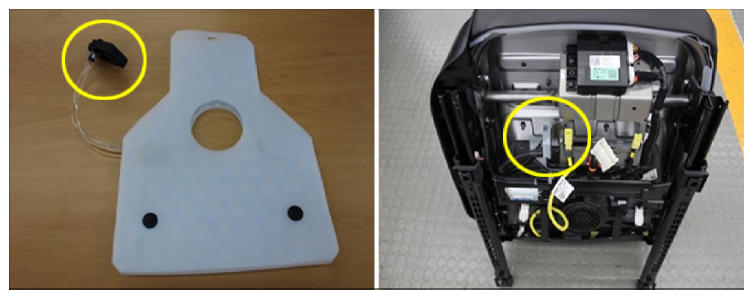

PODS-G (Passive Occupant Detection System) ECU
In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System.
SRSCM recognizes the signal as 2 (two) different classifications; that is, 0 (Empty/Child), 1 (Seat Occupied) With these signal, SRSCM determines whether it needs to deploy PAB (Passenger Airbag) or not.
NOTE:
If any of the following conditions occur, 'Occupant Classification System (WCS, PODS, BOSE) Reset must be performed again after checking OCS Diagnostic Codes.
- PODS-G ECU or seat cushion assy is replaced.
- The telltale lamp is not illuminated when the passenger seat is not occupied.
- The telltale lamp is delayed more than 10 seconds to be turned off when an adult passenger seats in.
