Automatic Transaxle System Diagnosis - 2.0L (Except HEV)
>>
DTC P0601-00: Internal Control Module Memory Check Sum Error
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

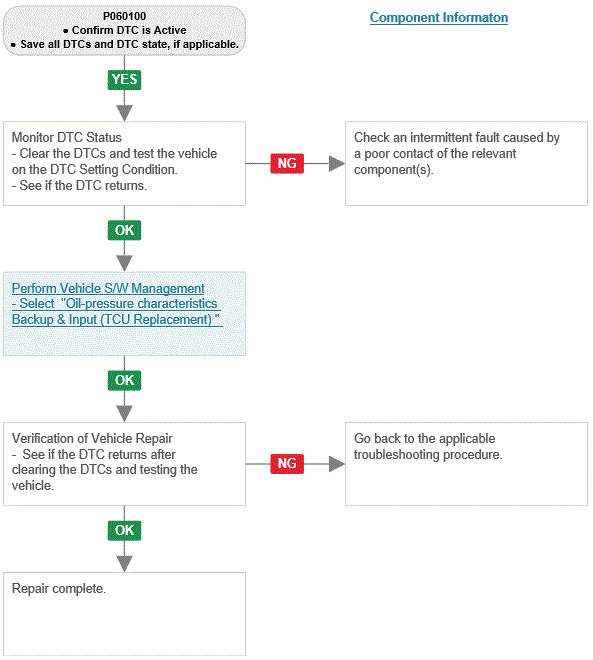

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
