Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

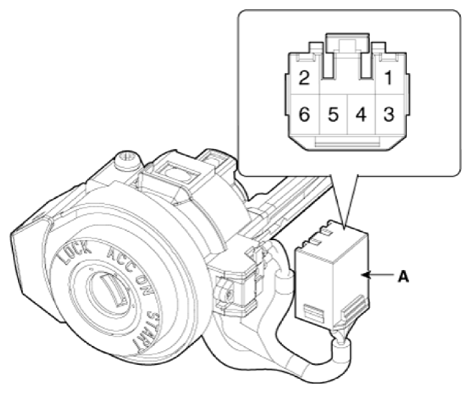

    G14600502Courtesy of HYUNDAI MOTOR AMERICA

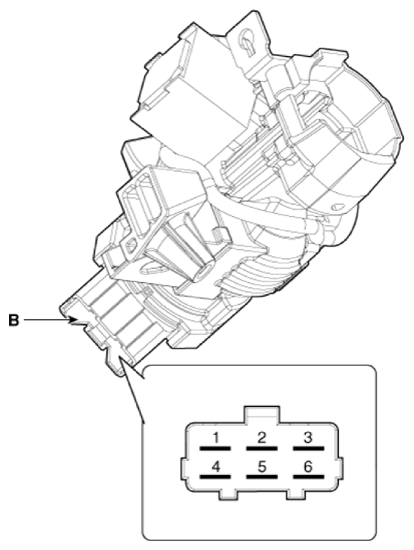

    G14600503Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

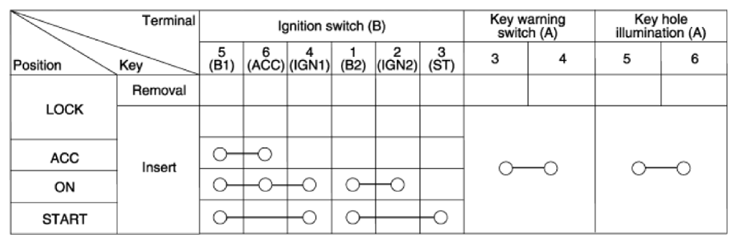

    G14600504Courtesy of HYUNDAI MOTOR AMERICA
